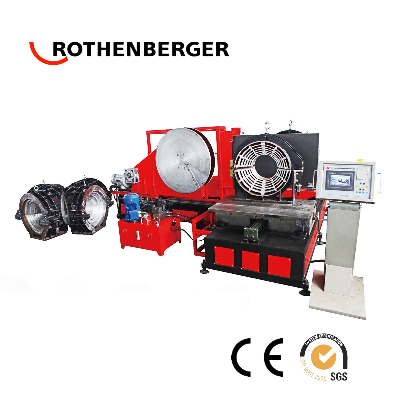

Workshop Fitting Fusion Welding Machine (SHG800)

Workshop Fitting Fusion Welding Machine SHG800Application and features1  Suitable for fabricating elbow, tee, cross and Y shape (45° And 60 ° ) fittings of PE PP PVDF in workshop. Also used to lengthen the injection moulded fitting and make an integrated fitting.2  Integrated structure. Nothing remains but to choose the different special clamps while fabricating different fittings3  Removable PTFE coated heating plate4  Electric planing tool with safety limit switch5  Low starting pressure and high reliable seal structure6  Separate two-channel timer records times in soaking and cooling phases.7 Digitally High-accurate and shockproof pressure meter indicates clearer readings.8  Linear guide ways are equipped with heating plate and planing tool9  Products comply with 98/37/EC and 73/23/EEC standardsOptional partsSpecial clamps for welding flange stubSpecial clamps for short spigot fittingSpecial clamps for welding Y shape (45deg; And 60deg; ) fittingTechnical parametersModel SHG800 Pipe Sizes 450, 500, 560, 630, 710, 800 Application                                                                0~90° elbow, tee, cross, 45° and 60° wyes (optional parts should be used) Heating Plate Max. Temp. 270 Temp. deviation in surface (170~250 Degree) ± 10 Pressure adjustable ranges 0~16MPa Working Voltage 380V, 50Hz Heating Plate Power 39KW Hydraulic unit power 4.0 KW Planing tool power 4.0 KW Total Power 47 KW Total Weight 4900KG Exclude optional parts      CertificateCompanyOur company is the leader manufacturer of butt fusion equipment in china.We occupy the 70% domestic market and export to more than 45 countries.we specialize in producing a complete range of international standard butt fusion equipment including field welding machine,workshop fitting machine,pipe saw,all the optional parts and tools required under the ISO9001 system and approved to CE standards by SGS.In 2015, my company joined German ROTHENBERGER tools group, becoming one of the more than 50 companies under the first European big pipe tool production and sellers. with the German headquarters and subsidiaries throughout the world to work together, we will further development of domestic and international market.  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
