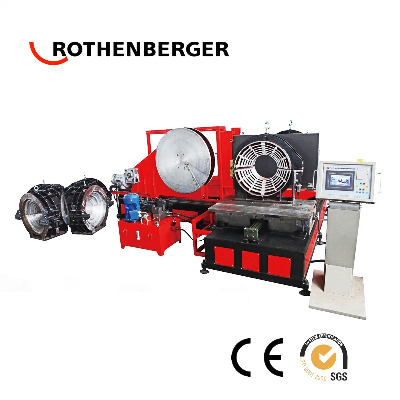

Workshop Fitting Fusion Machine R450W

Workshop Fitting Fusion Machine R450WApplication and features:*Suitable for fabricating elbow, tee, cross and Y shape (45 degrees and 60 degrees) fittings of PE, PP, PVDF in workshop. Also used to lengthen the injection moulded fitting or make the integrated fittings.*Integrated structure. Nothing remains but to choose the different special clamps while fabricating different fittings.*Removable PTFE coated heating plate.*Electric planing tool with safety limit switch.*Low starting pressure and high reliable seal structure.*Separate two-channel timer records times in soaking and cooling phases.*High-accurate and shockproof pressure meter indicates clearer readings.*SHG450 linear guide ways are equipped with heating plate and planing tool.*Products comply with 98/37/EC and 73/23/EEC standards.Optional parts*Special clamps for welding flange stub.*Special clamps for short spigot fitting.*Special clamps for welding Y shape (45 degrees and 60 degrees) fittings.Technical  parametersModelR450WPipe size(mm)250,280,315,355,400,450Application 0~90 degrees elbow, tee, cross, 45 degrees 60degrees Wyes (Optional parts should be used)Heating plate max. temp.270 degrees CTemp. deviation in surface(170-250 degrees C)≤±7 degrees CPressure adjustable ranges0~16 MPaWorking voltage380 V, 50 HzHeating plate power12 KWPlaning tool power4.0 KWHydraulic unit power2.2 KWTotal power18.2 KWTotal weight2850 KGSCertificateCompanyOur company is the leader manufacturer of butt fusion equipment in china.We occupy the 70% domestic market and export to more than 45 countries.we specialize in producing a complete range of international standard butt fusion equipment including field welding machine,workshop fitting machine,pipe saw,all the optional parts and tools required under the ISO9001 system and approved to CE standards by SGS.In 2015, my company joined German ROTHENBERGER tools group, becoming one of the more than 50 companies under the first European big pipe tool production and sellers. with the German headquarters and subsidiaries throughout the world to work together, we will further development of domestic and international market.  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
