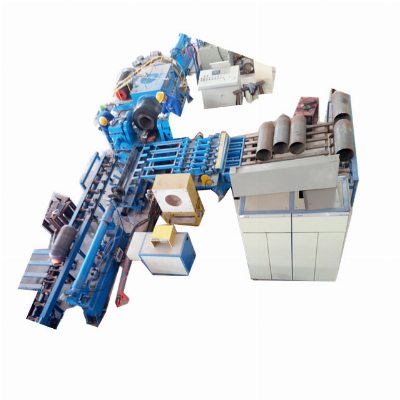

Hot Spinning Machine for Argon Seamless Cylinder

Description  Technical specificationThis machine is designed for cylinder's necking-in and bottom closure of high pressure cylinders, CNG cylinder as well as the other pressure vessels. The maximum applicable diameter is 406mm, and the maximum spinning length is 2000 mm, its controlling system adopts Siemens PLC.Spinning diameterMax. 406mmSpinning diameterMin. 325mmSpinning lengthMax. 2000mmSpinning lengthMin. 800mmStarting wall thicknessMax. 18mmStarting wall thicknessMin. 5mmSpinning cycle (incl. load/unloading/necking-in)Max. 2.5minEquipment centre height900mmMain spindle drive90KWAxial stroke of sliding block65mmRadial stroke of sliding block17mmRadial clamping force200KNMain spindle speed (Variable)0-320 rpmMould axial stroke321KNMax. mould axial feed-in speed30°/sMould rotating angle0-91°Hydraulic motor22KWProportional speed regulated reversing valveItaly ATOSControlSiemensConnected electrical load3*380V, 50HzHeating power of the pipe end500KW/1000HzConnected pneumatic load6 bar  Manufacturing processMachinery testingMouth closing Bottom pressing Related MachinesCNC threading machineSeamless cylinder Tube neck drilling machine is suitable for bore of cylinder bottleneck, and processing of radial facing, inside-hole, cylindrical turning as well as threading, which are realized by NC programming. Single station device is adopted for input and output materials (semi-automatic); The work piece clamping adopts the front top bowl positioning.Embossing machine1. The fuselage is a steel plate welded structure, which requires good rigidity and stability. The fuselage weighs about 8 tons (excluding hydraulic system and loading and unloading systems).2. The bottle body is positioned at the front, the electronic encoder is positioned accurately, the rear is positioned with a screw drive, and the rear cylinder pushes the front The sliding seat moves back and forth on the guide rail.3. The sliding seat moves back and forth on the guide rail, with automatic loading and unloading functions.4. The production of cylinder with different diameters can be achieved by adjusting the center distance of the cylinder supporting rollers and the height of the roller base.5. The rollers installed on the cylinder tray can move back and forth. When the workpiece is used for typing, the rollers of the cylinder tray can move up and down to protect the bottle from scratches on the workpiece. Our hot spinning machine for different sizeMachine ModelTHG622THG660THG720THG920Processing Dia. (mm)406~622406~660559~720559~920Processing Length (mm)5500-125005500-125005500-125005500-12500Processing Thickness (mm)10-3010-3010-3010-30Central Height (mm)1300130013001300Main Engine Power (KW)200250280355Rolling wheel swing angle90°90°90°90°Control MethodsCNCCNCCNCCNC  Machine ModelTHG325THG406Processing Dia. (mm)219~325325~406Processing Length (mm)800-2000800-2000Processing Thickness (mm)5-185-18Central Height (mm)11001200Main Engine Power (KW)90144Rolling wheel swing angle100°100°Control MethodsCNCCNCCNC Template TYPR SPINNING MACHINE    MachineModelTHM232THM325THM406Processing Dia. (mm)200~232219~325325~406Processing Length (mm)700-1700800-2000800-2000Processing Thickness (mm)3-155-155-18Central Height (mm)100011001200Main Engine Power (KW)3790110Rolling wheel swing angle90°90°90°Control MethodsPLCPLCPLCPacking & DeliveryTo better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.Our ServiceCompany Profile   FAQQ: How can we guarantee quality?A: Always a pre-production sample before mass production; Always final Inspection before shipment;Q: What can you buy from us?A: All the machine for the CNG cylinder production line.Q: Why should you buy from us not from other suppliers?A: Wuxi Longterm Group is group corporation which are professional supplier of cable, LPG gas cylinder, steel drum, LNG and CNGmachinery with more than 25 years of experience and a strong professional R & D teamQ: What services can we provide?A: Online technical support, On-site installation, Spare parts...We need to know the following information to make the quotation to you:1. The technical drawing of the cylinder.2. Daily capacity.Welcome to inquiry!/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
