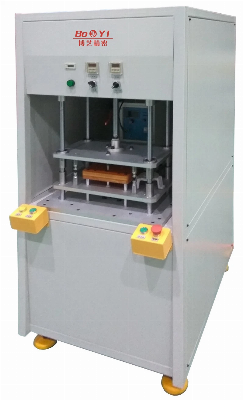

High Frequency Nut Embedding Welding Machine Model:BY-480MZ(GP)ItemDetailed InformationProduct IntroductionThis equipment is a standard high frequency model, has been used in nut embedded welding.High power high frequency machine can heat the nut instantaneously to meet the welding requirements, can be used for high temperature material embedded.10 sets of welding programs can be pre-stored, and the data interface can run in tandem with the production line.Products of the same type can be replaced by copying clamp to achieve universal. Equipped with man-machine interface and Chinese and English bilingual interface operation. Adopt SMC cylinder/RONGDA bearing.Machine was designed with integral square tube and metal plate welding to strengthen the overall rigidity, with more stable operation.Production cycle time 25S-35S.Technical ParametersEquipment demension(L)800MM*(W)1000MM*(H)1700MM.Maximum allowable die size of equipment(L)480MM*(W)300MM*(H)200MM.Electric power requiement: 3 phases 380V 50Hz(If there are special requirements, customer confirmation is required.).The outlet pressure of the air compressor: 4Kg/cm2-6Kg/cm2(0.4MPA-0.6MPA).Adaptable to ambient temperature: -5ºC~40ºCAdaptalbe to humidity : 20%~80%The noise of the transmission part shall not exceed 70 db.Overall Power:6KW /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
