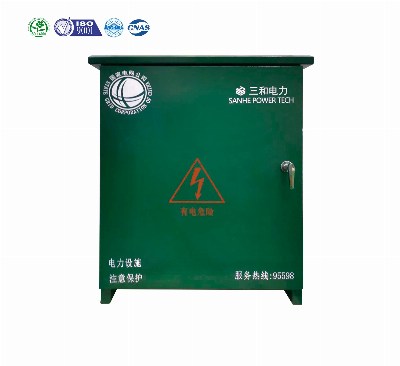

Suar Series Three-Phase Unbalance Automatic Regulator Device

SUARSeries Three-phase UnbalanceLoad Automatic Regulator DeviceRated Voltage:0.4kv Rated Frequency: 50HZ Function:Module by collecting the current and voltage signal of the distribution line according to the requirements of three-phase unbalance, reactive power, power factor and harmonic filter reasonable and fast compensation system reactive power, filter harmonic and adjust the three-phase unbalance, so that the main line system power factor control to 0.99, harmonic filter rate at 85% and above, three-phase unbalance adjustment within 5%. Thus, the service life of the transformer is extended, the effective output capacity is improved, the loss is reduced, the power quality of the distribution network is improved, and the electricity environment is improved.Application:Widely used in power grids.Installation:indooroutdoor Diagram Technology Specification Nominal voltage0.4kVRatedcapacity50kvar75kvar100kvarInput voltage range80%~120%Reactive power     compensation outputCapacitive output or perceptual outputPower system frequency50HzCompensating current75A100A150AEfficiency>97.5%Response time
