Good Price Lead-Free Wave Machine/Lead Free Wave Solder/Wave Soldering

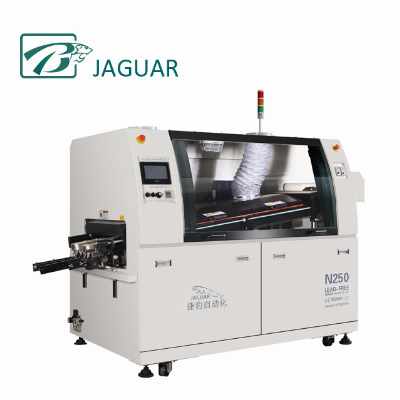

DIP Wave soldering machine JAGUAR N250 High Quality High Efficiency Specification:Model No.JAGUAR N250Number of heating zones2Length of heating zones600mmBody size1800(L)*1200(W)*1600(H)Outside dimension2600(L)*1200(W)*1600(H)Weight700KGTotal/running power11KW/4-6KWAir supply0.5MPaPreheating methodHot airPreheating power220V 5KWControl  methodPress key +PLC (Option: touch screen, PC)Range of temp. controlRoom temperature---300ºCPreheating timeAbout 10-15mins for setting 150ºCSolder typeLead-free / Sn-PbSolder pot capacity220KGSolder pot temperature300ºCSolder power380V 6KWSolder temp. control methodPID&SSRWave crest drive power500W 220VWarm-up time of solderAbout 120mins for setting 250ºCPCB  width50-250mmConvey  speed0-1800mm/minConvey  directionL→R (R→L optional)Convey   angle4-7 ºFlux pressure3-5 barFlux capacity3.2L Introduction:1. Automatic conveying power system and auto synchronous board feeding functions.2.Tin stove peak uses frequency conversing speed adjustment which can independently control the wave height.3.Flux sprays system using scanning spray nozzle, Japanese nozzles and rodless pneumatic cylinders and PLC control, accurate and reliable.4.PLC is used to control the machine, to ensure the reliability and stability of the system.5.With Remote Infrared Ceramic heating pipe preheating device, heat radiation directly to the circuit board bottom, fast heating and stimulate the full activity of flux.6.Special alloy transportation chain claws, non-stick tin and ensures the 7.quality of welding PCB board.8.Tin stove adopts imported high frequency conversion motor independent control, stable performance.9.Lead-free solder furnace with independent design, environment protection and safety, easy to clean.10.Preheating system uses three independent temperature control so that ensure the excellent heat preservation, temperature uniformity, temperature difference no more than ±2ºC.11.Time can be controlled, we can preset switch functions, tin stove can heat within 90 minutes.12.automatic claw cleaning function ensure the cleanliness of claws.13.Reasonable design and sensitive fault security alarm system ensure the stable performance and operators' safety.FAQ1) This is the first time I use this kind of machine, is it easy to operate? There is English manual or guide video that show you how to use machine. If you still have any question, please contact us by e-mail / skype/ phone /trademanager online service. 2) If machine have any problem after I receive it, how can I do ? Free parts send to you in machine warranty period. If the part is less than 0.5KG, we pay the postage. If it exceeds 0.5KG, you need to pay the postage.  3) MOQ ? 1 set machine, mixed order is also welcomed. 4) How can I buy this machine from you? ( Very easy and flexible !) A. Consult us about this product on line or by e-mail. B. Negotiate and confirm the final price , shipping , payment methods and other terms. C. Send you the proforma invoice and confirm your order. D. Make the payment according to the method put on proforma invoice. E. We prepare for your order in terms of the proforma invoice after confirming your full payment. And 100% quality check before shipping.  F.Send your order by air or by sea. 5)Why choose us ? A. Gold supplier on Alibaba ! B. Trade assurance to US$900,000 ! C. Best price & Best shipping & Best service !Contact Info:Shenzhen Jaguar Automation Equipment Co.,Ltd. Web:  jaguarsmt.en.made-in-china.com   /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
