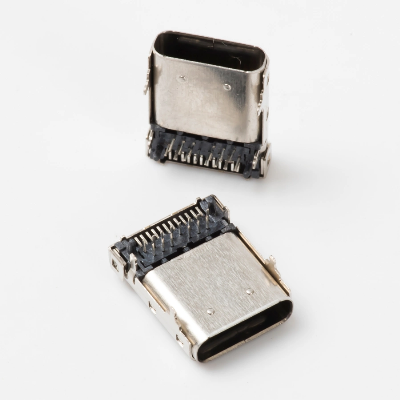

Type C USB 12pin Female Solder

OEM &ODM provider since 2004. Product Details Basic Info. USB TYPE C ,3.1  Model NO.: USBX-12FX-XXR0-01   USBX-12FX-XXR0-02 Interface Type:type c of usb  Connector:USB TYPE C  Universal:Universal Cable Length:Connector only,Cable can be customized. Data Transmission Function:Data ,SIGNAL Transmission Function Surface:Smooth and light,can mating on each sides. Charging Function:Not Only Charging Function Customized:Tranditional ,can customized Export Markets:Global Additional Info. Packing:Tray Standard:RoHs Origin:Kunshan, China Production Capacity:10000PCS/M Product Description SPECIFICATIONS Current Rating:5A for Pin (A4, A9 ,B4,B9),1.25A for other Pin.Dielectric Withstanding Voltage:AC100V R.M.S.Insulation Resistance:100MΩ Min at DC500VContact Resistance(Low Level):40MΩ Max.Operation Temperature:-55°C~+85°CMATERIALS Housing:Thermoplastics,UL 94V-0 RatedContact:Copper AlloyOuter Shell:Stainless Stell.Inner Shell:Stainless Stell.Mid Shield Plate:Stainless Stell.EMC PAD:Stainless Stell.Features: High speed at 10Gbps Type-C Male To Type-A Male  USB3.0 Type-C Male To Type-A Male USB2.0 Type-C Male To Type-C Male USB 3.0 Type-C Male To Micro-B Male USB 3.0    Stratety: Insist on differentiation& diversity. Spirit: Profession, Preciseness, Practicability, Self-examination Value: Integrity management, continuous improvement and eco saving Vision: Be famous connector supplier in China. Mission: Customer satisfaction and employee happiness oriented. /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
