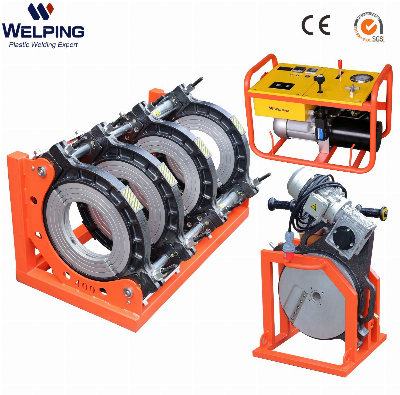

180-400mm Automatic Plastic Hot Plate Butt Welder / China Factory

ModelWP400BSuitable materialsPE, PP, PVDFRange180-400mmStandard reducers (mm)180-200-225-250-280-315-355-400mmPower supply380VFrequency50Hz, 3PHTotal power7.7 KW         Heating plate5.5 KW         Planing tool1.1 KW         Hydraulic station1.1 KWMax.Pressure0-16MPaHydraulic oilL-HM46Max.Temperature of heating plate270ºCTemp.Deviation in Surface±5ºCTotal Weight362kgNet weight330kgBasic Frame plywood1330*680*750mm planing tool & heating plate plywood860*615*750mm Hydraulic Unitplywood700*490*500mmBasic frameFeatured by· Italy DNP quick coupler· Chromated hydraulic cylinder made    of 1045(ASTM)/S45(JIS)/C45(DIN) steel· Chromated integral shaft made   of1045(ASTM)/S45C(JIS)/C45(DIN) steel· Base made of Q235 steel with spraying treatment· Cast aluminum clamps, sandblasting & Spraying   treatment  Planing toolFeatured by HSS blade with double edgeDie-cast aluminum trimmer plate, durable and anti-corrosionAluminum alloy frame of motor with good heat dissipation performanceCarbon brush motor with pure copper wireHydraulic stationFeatured by   220V asynchronous motorCHNT electricity leadkage protection switchØ100mm presure meterRelief valve, regulating valve, maintaining valveSNModelWelding rangePower supply1WP160B63-75-90-110-125-140-160 (mm)220V, 50Hz2WP200B63-75-90-110-125-140-160-180-200 (mm)220V, 50Hz3WP250B90-110-125-140-160-180-200-225-250 (mm)220V, 50Hz4WP315B110-125-140-160-180-200-225-250-280-315 (mm)220V, 50Hz5WP355B160-180-200-225-250-280-315-355 (mm)380V, 50Hz6WP400B160-180-200-225-250-280-315-355-400 (mm)380V, 50Hz7WP450B200-225-250-280-315-355-400-450 (mm)380V, 50Hz8WP500B250-280-315-355-400-450-500 (mm)380V, 50Hz9WP630B315-355-400-450-500-560-630 (mm)380V, 50Hz  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
