Naec Automatic Arc Welder 2′ ′ -60′ ′

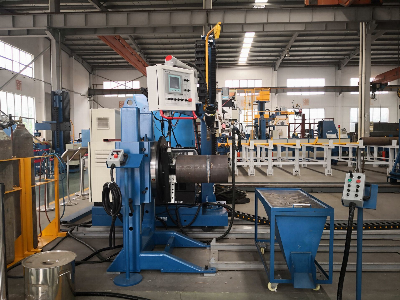

AUTO Automatic Pipe Welding StationFeatures: 1.  Three models available( 8"type, 16" type,24"type);2.Suitable for C.S./S.S./Alloy S., etc.;3.  Consist of two welding machines/heads, one is column and boom type; another is pressure head type;4.  TIG/MIG/SAW are optional;5.PLC system control & WPS programmed;6.Higher welding quality and efficiency, for example, for a 24" type automatic pipe welding station, it can reach 330DI-375DI /day productivity, including handling, presetting time.AUTO Automatic Pipe Welding Station is standard designed, including Pressure-head Type Elbow Welding Machine, Elevating Type Pipe Supporter, and Column & Boom Type Welding Machine, Chuck-type Positioner, and Rail Skids. Each welding station has two welding heads, and the complete station is able to do welding of pipe fittings to pipe fittings, pipe to pipe fittings such as elbow, flange, tee, and reducer. The two welding heads is able to work at the same time to finish both short and long pipe spool joint welding.  There are more than 40 sets of WPS program stored in the control system. Through the touch screen the operator just need to select the welding procedure to be used for various diameters of pipes with different wall thickness. And it can use T.I.G, M.I.G, or S.A.W welding process for joint automatic root pass, fill and cap pass welding.It is widely used in the industry of oil and gas, refinery, petro-chemical, shipping building, offshore, power plant, nuclear plant, etc.Pipe Spool Fabrication Machines1Pipe Cutting& Beveling All-in-one Machine>Suitable for pipes not larger than 8",max.thickness:20mm>Cutting efficiency:100times/8hrs>PLC control with automatic measuring to guarantee the same processing cycle>Widely used for small bore C.S/S.S production lines2High Speed Band-saw Cutting Machine>Three models available(16"type,24"type",48"type)>PLC system control;self-measuring function with precision:±0.5mm>Using hydraulic self-centering chuck>It only takes 6 minutes to cut a 24" pipe of 25mm thickness>Widely used for C.S/S.S production lines.3High Speed CNC Pipe End Beveling Machine>Automatic self-centering chuck>Single V,double V,U type bevel>Can be matched with pipe end turning devic>High speed beveling:for example,it only takes 2.5minutes to get a 37.5 degree bevel for a S.S pipe end(diameter :610mm,thickness:25mm)>Several models available:16",24",32",48"4Two / Multi- Axis CNC Flame/Plasma Cutting Machine>High efficient pipe cutting with automatic self-measuring function, pipe end beveling, intersection line profiling for both main and branch pipe.>Five/multi-axis cutting machine can profile more complicated outlines with various bevel type>Standard machine suitable for pipes nor larger than 24''5Multi-function Pipe Fitting-up Station>Suitable for flange,elbow,tee,reducer to pipe and special T-joint fitting-up.>Light-duty type(manual) and heavy-duty type(motorized) are available.>Different types available, 8" type, 24" type, 32" type, 48" type, 60" type6Automatic Pipe Welding Station>With two welding heads>TIG/MIG/SAW are optional>PLC system control & WPS programmed>Max. efficiency fo reach welding head can be 400D.I/8hrs even use TIG/MIG technology.>Different types available, 8" type, 24" type, 32" type, 48" type, 60" type7Conveyor Handling System>used for pipe convenient transporation during in pipe spool fabrication.>Its speed is adjustable between 2M to 20M/min.For more information, please contact us, thank you!/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
