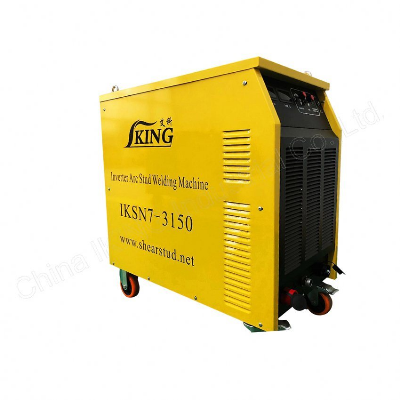

IGBT Inverter Type Arc Stud Welder

Product DescriptionArc inverter IGBT stud welding machine RSN7-2500 China IKING igbt inverter type drawn arc stud welder are mainly applied to the installation of stud fusion welding in construction of steel structure, bridge and railway etc . with functions of weld time preset, weld parameter preset and digital display etc. The precision preset time can reach to 0.01 second, and welding preset current can reach to 1ampere, which improve welding reliability and stability and can be operated easily. The main power of welding machine is designed in compact size and lightweight, can work 24 hours continuously. With design of anti-misoperation, it can prevent repeat welding onto the same point. The welder also have functions of short-circuit pretection and circuit-breaker protections, which can protects circuit control board well, and the welder can be started smoothly after trouble-shooting. With all pretections above, the failure rate of the welder is low, and it can prolong the life-span of welding machine.   Features:Light weight, simple maintenance, stable and reliable welding quality, energy saving and environmental protection.Trial industry: steel structure, shipbuilding, chemical, construction, metallurgy, automotive, bridge, boiler, chassis and so on.Technical Data:ModelModelSN7-1600SN7-1600SN7-2500SN7-2500Stud Rangeφ5-16mmφ6-18mmφ8-20mmφ10-25mmφ10-28mmMax Weld Current1200A1600A2000A2500A3150ACurrent Range(stud)100-1200A100-1600A100-2000A100-2500A100-2000ACurrent Range(MMA)100-1200A100-1600A100-2000A100-2500A200-3150AWeld Time400-3000msWeld Speed16pc/M10/min16pc/M12/min16pc/M18/min16pc/φ22/min16pc/φ22/minMain CircuitIGBTControl CircuitPIC/DSPRepeat Cycle LockAutomatic ProtectionPower Supply3 phase, 380VAC/50Hz or 60Hz (other voltages available)Input Voltage Fluctuation Range±10%Cable Spec1*8+3*10mm21*8+3*10mm21*8+3*10mm21*8+3*10mm21*8+3*10mm2Control Cable Spec4*1mm2Max. Weld Extension Cable 100mMax. Earth Extension Cable20mProtectionIP23Dimension(mm)640*420*550640*440*570640*440*570700*440*800700*440*740Weight55kg60kg70kg70kg98kgMulti-functionStud welding/MMA weldingGas ProtectionOptionalWeld GunKNQ7B/KNQ9Supply Scopewelder, weld gun, weld cable, earth lead(earth cable), chucks, ferrule holders, spanner, doc.Application:Our Company:CHINA IKING INDUSTRIAL GROUP CO.,LTD is one of the most professional manufacturer and exporter of stud welding products. We have a shear stud and Bolt&Nuts factory in Tianjin city. We can provide various high quality ARC studs, CD studs and ARC welding machines&guns. We also can manufacture according to customer's special requirements. IKING products are strictly implement quality standards, both domestically and internationally such as ENISO13918.AWS D1.1. JIS B918 and so on. IKING quality control department is working strictly to make sure no one unqualified of products get out of our factory.After 27 years development, now we totally have 15 sets of machines and can reach 4000tons per month producing,capacity. By our always continuous innovation on production technology and harsh control on products quality, IKING have had got the CE,ISO,SGS certificates and have become reliable supplier and good partners for our customers.Now IKING have eatablished long-term trade relationships with more than 50 countries from Ruissa, UK, USA, German, Poland, Kuwait,Saudi, Arabia, Bangladesh, VAE, Vietnam, South Africa and so on.Packing Details:Arc inverter IGBT stud welding machine RSN7-25001. Outer packing: sea worthy plywood cases.2. Inner package: welding machines covered by bubble covers and inside fixed by battens with nails; matched welding guns and other accessories packed on pallet.3. Packing size: please refer to specific welder model packing size.4. Container load: please refer to specific welder model packing size.Contact Us:Aaron  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
