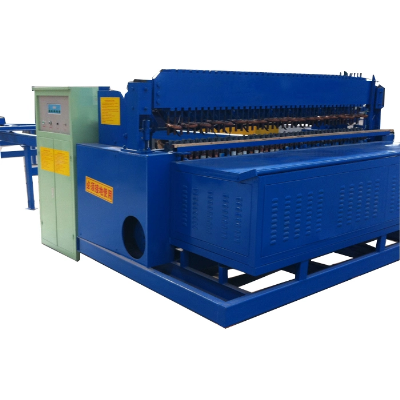

Automatic Fence Panel Mesh Welding Machine

Steel bar mesh welded machine automatically1, the max width of mesh is 2500mm, the diameter of weld steel bar 2.5mm--6mm 2, the wire distance is bigger and equal to the 50mm, the wire distance can adjust willfully 3, the latitude silk spacing can adjust willfully 4, welding transform air is self-controlling, the power is bigger than 150KVA 5, time contracts welds at different times 6, control and reduce electrical net pollution by weaving 7, the pressure of welding can change 8, control and welded automatically, high speed, high production efficiency 9, the machines are widely used in railway, highway, high-level construction. H1203CH   1. FunctionAutomatic welding panel machine2. usagePrevention for road, railway, airport, residence district, seaport, garden, feeding and husbandry Welded steel bar panels are widely used in construction reinforcement, the ground for the tunnels, bridges, highway, airport and wharf, also in construction of wall body.3.modelSHA25004. Size of outsidewidth3.5m length2.3m height2.2m5.weight3.5T6.power3.0kw7.voltage380v/60hz( according your need)8      Max. Width of mesh2.5mMesh size50*50---200*2009. Transformer 100KVA*510. Diameter of welded pot16mm11. Diameter2.0-6.0mm12. Welded  materialLow carbon wire,galvanized 13.Workshop need5*15m1. FunctionAutomatic welding panel machine2. usagePrevention for road, railway, airport, residence district, seaport, garden, feeding and husbandry Welded steel bar panels are widely used in construction reinforcement, the ground for the tunnels, bridges, highway, airport and wharf, also in construction of wall body.3.modelSHA20004. Size of outsidewidth4.5m length3.2m height2.2m5.weight7.0T6.power7.5kw7.voltage380v/60hz( according your need)8.Max. Width of mesh3m  Mesh size1/2"--10"9. Diameter1-8mm10. Welded  materialLow carbon steel wire 11.Workshop need     /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
