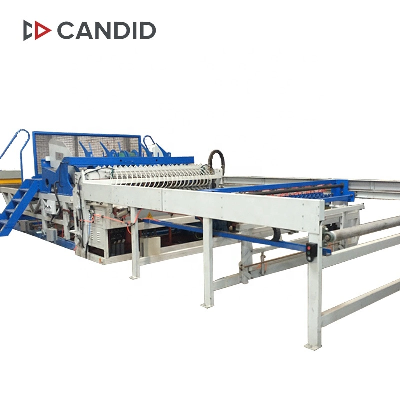

Full Automatic High Speed Wire Mesh Welding Machine Electric Welding Machine

Candid Full Automatic Low Noise Wire Mesh Welding Machine Electric Welding Machine supplier for Construction with low price Descriptions:Galvanized Steel Wire Mesh Welding Machine consists mainly of main machine for welding, material feeding mechanism, step-by-step mesh-grid-size-fixing mechanism, transverse wire falling mechanism, mesh falling and conveying mechanism, material storage rack, electric control system, air-driven system and water cooling system, etc.  Function FeaturesMain characteristic: Both line wires and cross wires are coiled, can weld continuous wire mesh sheets and wire mesh rolls.Main functional structures: Line wire straightening and locator device, line wire fed and locator device, cross wire straightening, cutting and alignment device,mechanical hauling wire mesh device, wire mesh locator device. AdvantagesIt's compact in structure, easily to operate and with fully functions. The machine is used to produce welded wire mesh.Technical parameter   nameUnit parameterDiameters of steel wiresmm2-12Maximum width of wire meshesmm2500mesh sizeSpace of the vertical wiresmmadjustSpace of the horizontal wiresmm50-300welded pointsPointscustomizedWelding frequencyTimes/min60-80powerVHz380/50(can be customized)Working pressure of the air-driving systemMpa≥0.8Pressure of cooling waterMpa0.3≤P
