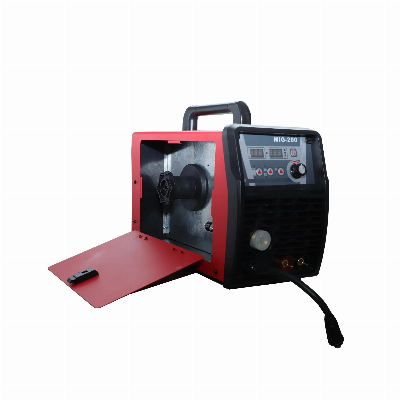

Portable MIG MMA TIG Gasless Flux Wire Welder

Home application MIG welder 1. MIG SERIES arc welding machine uses Mix gas as shielded gas to realize gas shielded welding, active gas(Ar+O2,Ar+CO2) as shielded gas to realize MAG welding and inactive gas(Ar)as shielded gas to realize MIG welding2.Easy-to-underdstand operator interface.Select material type,set wire diameter then start welding3.Digital control system, real-time display the welding parameters;digital voltmeter and ammeters for easy viewing4.Stick with adjustable Arc force;Wave form control;stable welding arc5.Lift TIG with solenoid valve and adjustable down slope time6.Thermal overload,over voltage and over current protection automatically shuts down the power source to prevent high repair cost7.Synergic control of the welding current and voltage8.5kg spool size makes machine light and portable9.Flux cored self-shielded3. Specification of Home application TIG/MIG/MMA Inverter Welding MachineItem/ModelMIG-200MIG-160 Voltage220V+/-15%220V+/-15%Frequency50/60HZ50/60HZRated Input PowerMIGTIGMMAMIGTIGMMA5.9KW4.3KW5.5KW4.2KW3.2KW5.1KWRated Input Current37A27.4A36A27A20A31.6AOutput Current Range25-200A10-200A10-170A25-160A10-160A10-160ADuty Cycle at 40°C30%30%No Load Voltage58V58VWelding Voltage Range15V-24V10.4V-18V20.4V-26.8V15V-22V10.4V-16.4V20.4V-26.4VEfficiency85%85%Power Factor0.720.72Wire DiameterSS:0.8/0.9/1.0MM;/1.0MMFe:0.6/0.8/0.9/1.0MMNet Weight13.5kgs11.5kgsDimension470*210*380MM470*210*380MMIP23S23SInsulation ClassFFCoolingAirAirShanghai Sanyu is one of the leading AC drive, Power Saving VFD, soft starter and welding machine manufacturesand exporters in Shanghai China, which has about twenty years history in this field.Till now our products have been exported to more than 30 countries.Our inverter and soft starter were used in "Beijing Center, Shanghai Expo Pavilion, Shanghai Air Port" etc.And we have CE, ISO9001, SGS, CCC certificate and so on.Certificates we have: /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
