Automatic Steel Pipe Welder (MIG/TIG/SAW)

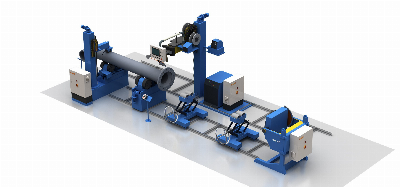

AUTO Cantilever Type Automatic Welding MachineFeatures: l   Three models available ( 8"type, 16" type,24"type,48"type and 60"type);l   Suitable for C.S./S.S./Alloy S., etc.;l   Suitable for flange, tee, reducer to pipe and special T-joint welding;l   Suitable for short pipe welding;l   TIG/MIG/SAW are optional;l   PLC system control & WPS programmed;l   Higher welding quality and efficiency, for example, for a 24" type automatic pipe welding machine, one welding head it can reach 165-187.5DI/day productivity, including handling, presetting time.AUTO Cantilever Type Automatic Welding Machine is special for short pipe to fittings welding, or fittings to fittings welding. It includes cantilever type automatic welding machine, Chuck-type Positioner, pipe supporter and Rail Skids. The cantilever Type Automatic Welding Machine can move along the guide rail to suitable for different welding joint position.There are more than 40 sets of WPS program stored in the control system. Through the touch screen the operator just need to select the welding procedure to be used for various diameters of pipes with different wall thickness. And it can use T.I.G, M.I.G, or S.A.W welding process for joint automatic root pass, fill and cap pass welding.  For more information, please contact us. Thank you! /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
