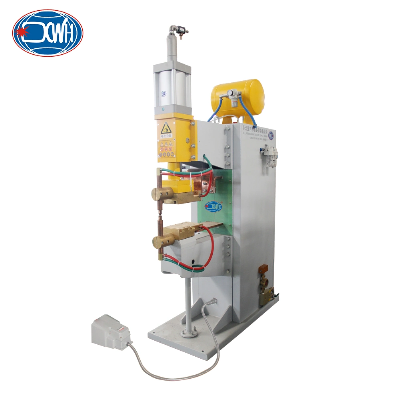

Heavy Duty Copper Resistance Manual Spot Welding Machine Stationary Welder

Product DescriptionProduct ParametersModelDN-40DN-63D(T)N-80D(T)N-100D(T)N-125D(T)N-160D(T)N-200Rated power At 50% (KVA)406380100125160200Rated primary power (V)380380380380380380380Secondary Voltage (V)5.26.77.98.38.69.110.6Rated frequency (HZ)50/6050/6050/6050/6050/6050/6050/60Max.Short Circuit Current (KA)14151618202834Max. weld power (KVA)6286170280300330410Throat (MM)500500630630630630630Max.Froce at electrodes (N)600060001000010000100001200012000Working stroke (MM)20203040405050Electrodes tlp (MM)Φ13*45Φ13*45Φ16*45Φ16*45Φ16*45Φ20*45Φ20*45Arms (MM)Φ50*150Φ50*150Φ80*220Φ80*220Φ80*220Φ80*220Φ80*220Projection Clamping Plate (MM)125*125125*125200*200200*200200*200200*200200*200Max.Welding Capaciry A3 steel (MM)2.5+2.53+34+44.5+4.55+55+56+6Cooling water flow (L/min)668881010 Main Features1. Stable machine structure upside and downside of electrodes apply the pressure mode with assistant stroke. The welding efficiency is much higher.2. The transformer of welding machine adopts the special resistance welding machine, the silicon steel slice is featured of high magnetic; the inner water- cooled by force; stronger power and high duty ratio.   3. Controlled by micro-computer and can saved at most 16 sets of welding settings, which is quite convenient for different kinds of welding sheets.4. Widely applicable to automobile manufacturing, production of house applications,hardware fittings and so on. can widely used in nut, studs, traffic tools, household items, cars. And it can be welded low-carbon steel, stainless steel, coated steel, non-ferrous metal wire, sheet, pipe, etc.Packaging & Shipping /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
