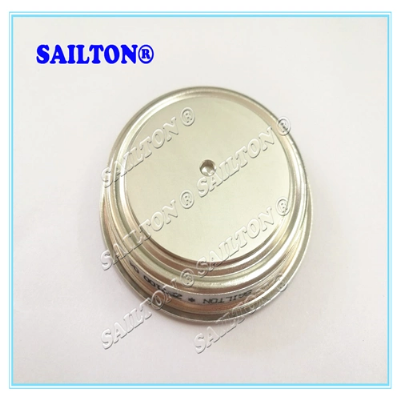

resistance welder high density reliability low thermal resistance diodeOur Advantages FeatureDesigned for medium frequency welding equipmentHigh reliability in the welding machineVery low on-state voltageVery low thermal resistanceUp to 2000HZ High current up to 18000AApplication For all kinds of intermediate frequency, power frequency resistance welding machine.Such as automobile welding clamp, seam welding machine, mesh welding machine, and so on.Product Description Welding diode for medium frequency spot welding We develop and produce high current welding diode for medium frequency spot welding applications.Our welding diode current have 4000A,7100A,9200A,10500A,12000A,13500A,16000A,18000A.Its voltage is 200V-600V. Packaging & Shipping PackingWelding DiodesWelding diode is a high current low voltage semiconductor device used on medium frequency spot welding machine, MFDC spot welder, seam welder.Its current range is from 7100A to 13500A. The Voltage is 200V or 400V. Welding diodes also are known as"Welder Diodes", "Welder Rectifier Diodes".Welding diodes are the core rectifier components during resistance welder. As welding rectifier diode output. Company Profile CompanyWe are the Chinese largest welding diodes production base.Welding diodes product line includes 7100A,9000A,12000A house type welder diodes, and 10500A,13500A houseless type welding diodes.Because of stable quality and long working time, it has won many clients' praise.E.g. resistance welding machine manufacturer, welding robotic service providers, automobile manufacturers, etc. Product Parameters DatasheetHousing TypePart No.IF(AV)VRRMIFSMI2 tVTOrTTVJMRthJCRthCHFOutlineTc=85ºC 50HZ TVJM50HZ TVJM TVJM TVJM (A)(V)(KA)A2S.103VmΩºC(ºC/W)(ºC/W)KN ZP4000/02-065000200-60045100.800.0301700.0100.00520-25D1ZP7100/02-067100200-60055150.750.0251700.0100.00520-25D1ZP12000/02-0611000200-60085360.750.0201700.0060.00335-40D2ZP16000/02-0616000200-600120720.800.0191900.0040.00250-60D3Housingless TypePart No.IF(AV)VRRMIFSMI2 tVTOrTTVJMRthJCRthCHFOutlineTc=85ºC 50HZ TVJM50HZ TVJM TVJM TVJM (A)(V)(KA)A2S.103VmΩºC(ºC/W)(ºC/W)KN ZP10500/02-0610500200-60070250.800.031700.00500.002630-50D18ZP13500/02-0613500200-60085360.750.021700.00390.002535-70D19ZP18000/02-0618000200-600120720.800.021900.00350.00270-80D20Housing outline Certifications CE Certification Matched Item or Assemblies Welding diodes unitWelding Diode Assembly FeatureHigh reliability Super large current Low on-state voltage drop Minimum thermal resistance Medium frequency, high frequency Air cooling, water cooling Applications:Rectification output device for inverter type resistance welding machine. Spot welding machine, Chink welding machine, Projetconwelding machine, Butt welding machine Classification:The heatsink or welding diode assembly is fully supplied. Welcome to contact me! /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
