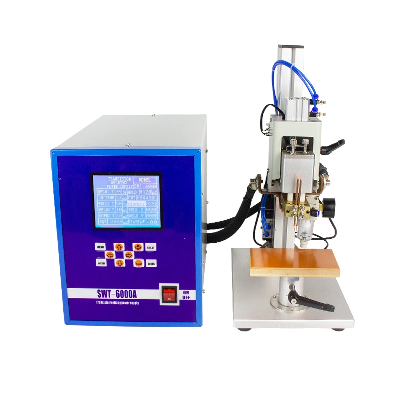

Spot Battery Welding Machine for Lithium Battery Pack Assembling

Spot Battery Welding Machine for Lithium Battery Assembling (GN-2118)  Product Description Specification: Battery welding machine welder for battery tabs packs   1. Power supply: AC 220V±10% 50Hz±2Hz 2. Max output power: 10KVA 4. Welding current: 00-99 5. Overall weight: 48KG 6. Dimension: 800L×580W×1100H (mm) 7. Scope of application: Suitable for 0.03mm~0.5mm soldering lugs. A). By the microcontroller (MCU) control with closed loop feedback control constant current output, voltage, power monitoring.B). Inverter bridge soft-switching technology to minimize switching losses, reduced electromagnetic interference.C). With current disorders, monitoring the value of unlimited, net pressure gauge, overheating and other fault diagnosis and alarm function.D). Inverter current abnormal automatic shutdown, enhanced system protection.E). Erduan heat setting, with the current slow down slow rise feature a wide range of time set (0-999ms), the welding process for complex needs.F). 7 set of parameters stored to facilitate the use of a variety of welding varieties.8.160X80 LCD Display, also shows a variety of content.G). Strong external communication function: Welding the end, failure, counting signal, easy to use automatic welding.H). 3 group start input signal (the largest group of welding parameters start 7), group 2 output driver signal, easy to use multi-head.Y). 3 phase AC380V input, network load balancing.J). Data storage by EEPROM, no battery life problems.K). Controller maximum output peak current 50A, voltage 530V, frequency square wave AC 2kHz IF.  IndexParameter                                                                           Technical parameterTypeGN-6000Input power AC 220V/50Hz±10%Output power6000ADriving formpneumaticOutput signalOptoelectronic switchWelding current0-99 adjustableWeld time1.0-3.0(mS)kfg0.5-4kgf Electrode dia.Top electrode 3mm,bottom electrode 6mm(The upper and lower electrodes of the spot welding machine can be made according to the different batteries of the customer)Electrode stroke15mm FeaturecontrolMicrocomputer controlPicture:Related Products: Nickel/Steel Strips Our Services    We could supply one stop solution ( turn key project) for you. 1.Full set of lithium battery materials,including :LiMn2O4,LTO,LiNiMnCoO2(NMC),LiCoO2,Graphite(MCMB)and other cathode&anode battery materials;Aluminum foil,copper foils,battery separator,etc. 2.Full set of lithium battery equipments,for example:mixing machine --coating machine--oven--rolling machine--welding machine--slitting / cutiing machine --winding machine--sealed machine,etc. 3.Full set of lithium battery technology.we can design the laboratory and production line,according to customer's request./* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
