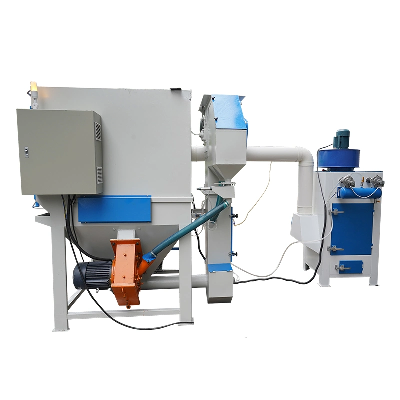

Alloy Wheel Shot Blasting Machine

Alloy wheel shot blasting machine  Product DescriptionThe shot blasting machine is an automated labour saving system which significantly simplifies the blasting process for wheel cleaning and finishing. Shot blasting machine gives an alloy wheel rim surface a roughness for good adhesion that will get perfect powder coat application. Detailed PhotosHow does alloy wheel shot blasting machine work?Shot blasting machine is powered by electromechanical not by compressed air, it works through a high-speed rotating impeller to throw out steel shots in high speed and high flow, thus creates more forceful impact to surface. The turbines located at appropriate angles blasts steel shots and cleans part surfaces.The alloy wheel is placed in the chamber where the process is fully automatic and can be controlled by a timer. Each finishing circle allows one piece alloy wheel blasted but only takes 1-3 minutes.           Shot Blasting Machine Impeller                               shot blasting chamber for wheel                               Effects after shot blasting Features1.Special design for wheel or rim shot blasting.2.Blasting one piece rim each time.3.Full cover one wheel, don't need to turn over the wheel4.Airless shot blasting to save power5.Compact design for saving space6.Dust collection system to keep the environment clean7.Inner cabinet is equipped with wear-resisting boardTechnical SpecificationsAlloy Wheel Shot Blasting Machine SpecificationsWorking Chamber SizeL1300*W1300*H780mmFootprint SizeL1720*W3658*H2265mmSuitable wheel size:Diameter700mm * Thickness500mm (Or smaller)Control SystemPLCRotating Speed of Rollers: AdjustableShot Blasting Speed AdjustableDust Collector Type:Anti-flame filtersPower Supply:ElectricImpeller head power:7.5KWFan motor power:2.2KWShot drive power:1.5KWElevator system power:2.2KWCertificationsOur company Kafan is the leading manufacturer and supplier of all kinds of sandblasting equipment, such as suction blast cabinet, press blaster, automatic sandblasting machineWith 10 years experienec in surfece finishing industry, Kafan provides customer whole-line service, inquiry, ordering, transportation, after-sale service. Because of the good quality and competitive price, we have exported more than 100 countries and cooperated with quantities of regular customers all over world. We have a production area of 2000m2, with rearch department, sales department, technical department, production department, quality control department, after-sale department, management department and so on.Welcome contact us for shot blasting machine/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
