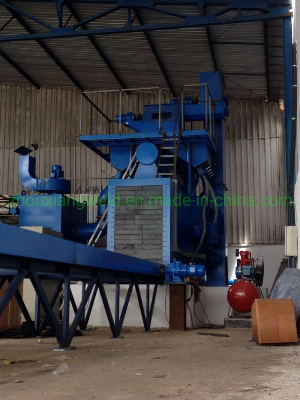

Sand Blasting Cleaning Machine for H Beam Steel Structure

Shot-blasting machine is a kind of shot-blasting equipment, which is applied to clean the surface of steel structure welding work-piece, H-style steel, plate and other profiles. It can clean away rusty spot, rusty scale, welding slag on the work-piece surface, as well as welding stress, in order to remove stress and improve surface lacquer quality and rot proofness of steel structure and steel.Technical parameter:ModelHGP0816HGP1018HGP1220Width×height of work-piece800×1600mm1000×1600mm1200×2000mmLength of work-piece3000~12000mm3000~15000mm3000~15000mmQuantity of Shot blaster888Allowable load of conveyor1000kg/m1000kg/m1000kg/mConveying speed0.5~5m/min0.5~5m/min0.5~5m/minAir volume for dust removal12000m3/h12000m3/h12000m3/hCirculation quantity of grinding shots120t/h120t/h120t/hExternal dimension of main machine (L×W×H)6770×2100×2900mm7200×2300×3250mm7200×2520×3650mmDepth of pit1950mm1950mm1820mmTotal power135kW140kW140kWAbove are our standard model, it can be designed and manufactured according to customer's request.Wuxi Zhouxiang Complete Set of Welding Equipment Co.,Ltd,founded in 1991,located in Wuxi city, about 100km from Shanghai.We have fixed assets of 150 million yuan,cover an area of 160,000 m2, staff 500 people,including more than 100 engineering and technical personnel.Our company was certified to ISO9001 Quality System Certification firstly in the industry and many products were certified to China Compulsory Certification(CCC).Our products sell well at home and abroad,including  Europe,America,Southeast Asia,Middle East and other countries. Zhouxiang products mainly include CNC flame/plasma cutting machine,H beam light duty production line,H beam heavy duty production line,Horizontal H beam production line,H beam assembly welding straightening integral machine,Corrugated web H beam production line,Box beam production line, Welding manipulator, Rotator, Positioner,Edge milling machine,End face milling machine,Shot blasting machine series,kinds of plate rolling machine,Profile bending machine and welders,fiber laser cutting machine,CO2 laser cutting machine,laser tube cutting machine,Fiber laser cutting robot and Fiber laser welding robot etc. We have high sincerity to do business with customers all over the world and establish good friendships.   /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
