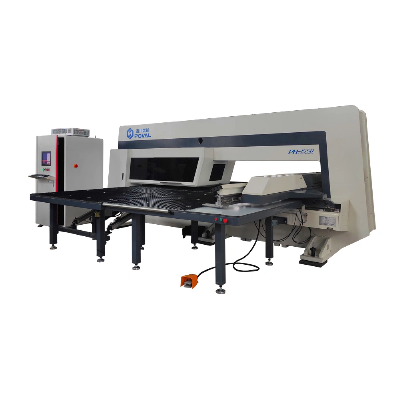

CNC Turret Punching Machine for Aluminum Plate and Steel Plate Punching

Servo Type CNC Punching Equipment / CNC Punching Press MachineFeatures:·Equipped Fanuc 5 axis CNC system, Fanuc CNC punch servo module, can realize 5 axis control at the same time.·Equipped with USB, R232 communication interface which can realize the front desk, backstage programming. ·Fuselage is O type Steel welding, the whole pass by tempering treatment to own good rigid and hardly deformation.·Equipped high strength nodular cast iron to cast into integral thick turret mold plate, thickness is 80mm, through heat treatment to get rid of internal stress, rigid good, precision stability, impact resistant ability good; greatly improving mold service life.·Equipped with high precision servo initiative transmission system, speed is faster and stroke is adjustable. · With the second positioning function, can achieve processing without dead zone.·The transmission system use original Taiwan brand with high precision, big guide the ball screw, linear guide rail are high precision and good performance.·Main pneumatic components, electric components, hydraulic components and transmission components adopt international well-known brand product, which makes the punch work perfectly.·Equipped with concentrated lubricating device, reduce friction and improve service life.·Equipped with 2 sets of auto-index station, can easily punch holes with different degrees.Specification                                           Unit                                     Specification model                                                       Punch Force             KN200300Max.Processing Size             mm1250*12501250*12501250*25001250*25001250*50001250*5000Max.Sheet Thickness             mm46Punching Frequency             hpm16001600Max.Sheet Traversing Speed                                      m/min8080Turret Speed             rpm4040Hole Accuracy             mm±0.1±0.1Max Punch Diameter              mmφ88.9φ88.9Number of stations in turret             No.24/3224/32Air Pressure             mpa0.80.8Controlled Axis               No.4(X,Y,C,A)4(X,Y,C,A)Prower Rating              KW3035Outline Dimension              mm4490*53300*21104490*5300*2110Machine Weight              T1314Notice:According to your requirements, the most suitable machines will be designed for your workpieces, please indicate the following details.1. Please tell us your metal sheet material.2. The workpiece dimension (including length, width and thickness).3. The information of hole shapes and hole diameter that you want to punch.4. It's my pleasure if you can send some photos or drawings of your products for our reference.Based on these details information, the detailed technical proposals will be sent to you for reference.Warmly welcome you to visit our factory in Qingdao China.   /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
