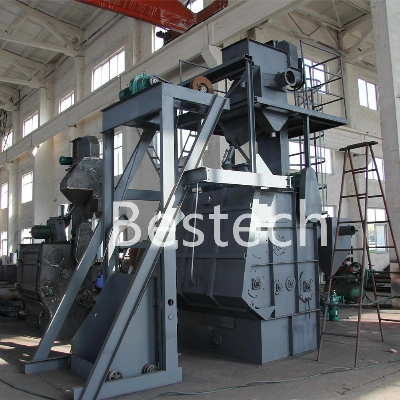

Automatic Loading and Unloading System Tumble Crawler Belt Shot Blasting Machine

Automatic Loading and Unloading System Rubber Belt Shot Blasting MachineThe automatic loading crawler belt shot blasting machine is suitable for cleaning thin wall of small size castings, forging pieces, stampings,gear, spring ,heat treatment workshop and the surface sand burning of fragile workpieces and scale. Sometimes it is also used for surface strength dealing of some parts.(note: you cannot cleaning directly the high temperature parts, deckle-edged parts,so it will damage the crawler) Automatic Loading Tumble belt shot blasting machineThis machine adopts end-to-end metal (or rubber) track to form a space roller, which makes the work roll continuously in the shot blasting process. It is mainly used for shot blasting treatment of various forging heat-treated parts or metal workpieces and can be used alone.Features of  automatic loading crawler belt shot blasting machine1.the automatic loading shot blasting machine is adopt the cantilevered centrifugal blast wheel , it has the advantage of long service life,simple structure.2.Adopt BE type winnowing separator, it has good effect of separate,and high productivity, it has the positive action to protect the blade. c)Adopt the Cloth Bag dust collector, it improve the environment of workers d)Adopt the wear resistant rubber belt track, it reduce collision damage of workpieces, noise Reduction.Automatic Loading and Unloading System Rubber Belt Shot Blasting Machine Technical ParameteritemunitsQ326CQR321015GN28GNproductivityt/h0.6-1.21.5-2.55-610-12feeding amountkg20060013003500max.weight of single piecekg1030230363diameter of end diskmm650100010921245efectve volumem30.150.30.430.79shot-blasting capacitykg/min100250480700air volume for dedustingm3/h2200500053006500power consumptionkw12.624.349.364.5outline dimensionmm3681*1650*58003972*2600*47684597*3262*57095300*5432*68141. Reply your inquiry in 24 working hours. 2. Experienced staffs answer all your questions in fluent English. 3. Customized design is available. UEM&UBM are welcomed. 4. Exclusive and unique solution can be provided to our customer by our well-trained and professional engineers and staff. 5. Special discount and protection of sales are provided to our distributor. 6. Professional factory : We are manufacturer, specializing in producing all kinds of machinery for more than 20 years, competitive with good quantity. 7.Sample: We can send out sample for test in one week if the order quantity is big enough. But the shipment charges is usually paid by your side, the charges will be rebounded when we have formal order. 8.As an honest seller, we always use superior raw material, advanced machines, skilled technicians to ensure our products to be finished in high quality and stable feature. Welcome to contact us or visit our company.   /* March 10, 2023 17:59:20 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
