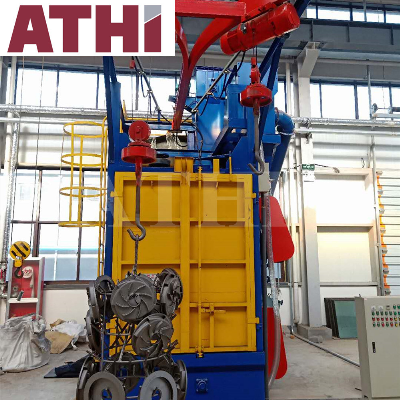

Y Track Spinner Hanger Hook Cast Iron Alloy Parts Shot Blasting Machine

Y Track Spinner Hanger Hook Cast Iron Alloy Parts Shot Blasting Machine1. Product DescriptionThis type of cleaning machine is suitable for surface cleaning or strengthening treatment of medium and small castings and forgings in the casting, construction, chemical, electrical, machine tool and other industries. It is especially suitable for surface cleaning and shot blasting of castings, forgings, aluminum alloy castings and steel structural parts of many varieties and small batches to remove a small amount of sand, sand core and oxide scale on the surface of the workpiece; it is also suitable for the treatment of heat-treated parts Surface cleaning and strengthening; this series of units has hooks to carry workpieces into the cleaning room for shot blasting, and is equipped with a rotation mechanism. It is mainly used for surface cleaning and strengthening of steel structural parts, castings, aluminum alloy parts and other parts. It is especially suitable for cleaning slender and thin-walled parts. It is widely used in casting, press forging, machinery, steel and other industries.The workpieces to be shot blasted is directly hung on the hook or hanger, and manually brought to the traction system at the front of the shot blasting chamber, and the hook automatically enters the shot blasting chamber. After the hook enters the shot blasting room, the door of the shot blasting room will be closed pneumatically and electrically interlocked to prevent others from accidentally opening the door of the shot blasting room when the workpiece is being blasted in the shot blasting room. The hook enters the shot blasting chamber to reciprocate and rotate back and forth in the set interval position, so that the workpiece is fully blasted and the dead angle of blasting is reduced. Two hooks and one hook are projected in the shot blasting chamber, and the other hook can load and unload the workpiece. The shot blasting time can be adjusted arbitrarily. After the shot blasting machine stops running, the shot blasting chamber door is opened to bring in and out the workpiece. The dust generated in shot blasting is filtered and discharged by the secondary dust collector.2. Technical Specifications  ModelSize of work piece cleanedLoad capacityWheel throw capacityVentilation capacityMotor powerOutline dimensions mmkgKg/minM3/hkwmmQAT376Ø600*11005002*1205000194429*2850*3443QAT378Ø800*150010002*200800032.54325*2660*5009QAT3710Ø900*160010002*250900036.555047*3850*5156QDAT3710Ø900*160010002*250900039.655844*2742*5716QAT3720Ø1400*230020003*2501500061.276110*3599*7842QAT3730Ø1600*230030003*2501500064.47085*4650*8652QAT3750Ø1800*250050004*2501800078.47062*5460*8652QAT3780Ø2000*300080004*2502000081.58050*6400*85263. Detailed Photos and Projects4. Company Profile5. Contact Us/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
