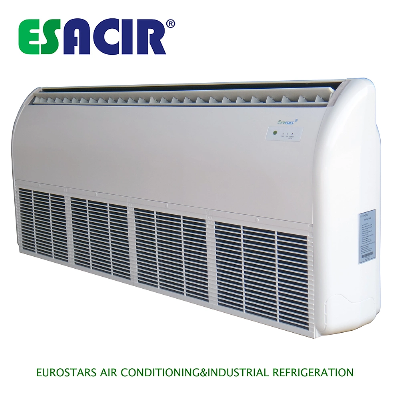

Central Air Conditioner Ceiling Mounted Floor Standing Fan Coil Unit

Central Air Conditioner Ceiling Mounted Floor Standing Fan Coil Unit1. Ceiling mounted floor standing fan coil brief introductionThe careful design of the main components, refined styling and the versatility of the product make it suitable for any type of installation in the residential, commercial or industrial context.Available in 8 constructional sizes with 2.7 to 12.6kW refrigerating power rating and 4.05 to 18.9 kW heating capacity, they are suitable for installation on walls, horizontal ceiling or floor standing, while their small size provides them with a pleasant appearance.2. Ceiling mounted floor standing fan coil unit main components(1) Fan Fans are centrifugal type. All fans are statically and dynamically balanced.(2) MotorSingle-phase motors are suitable for different voltages, such as 110V, 115V, 120V, 220V, 230V, 240V. All motors have 10 percent voltage utilization range and wired to unit terminal box. Motors are designed for long life.(3) CasingCasing are constructed of heavy gauge steel. Air grille is ABS material that easily to open for maintenance.(4) Heat exchangerCoils are standard design together with rows. High efficient hydrophilic aluminum fins are mechanically bonded to seamless copper tubes. All coils are specifically designed and circuited for water use. All coils are tested at 3.3MPa.(5) Drained panThe condensate water should be drained out to ensure the fan coil unit safety running. The fan coil unit shall be factory installed return air plenum that encloses the fan section of the unit. No field fabrication is required. The return air arrangement is from front of the fan coil.(6) Washable filterFilter is easy to pull out and washable.(7)Remote controller Comfortable and intuitive, with a minimal and ergonomic design. Remote controller with LED display shows the set-up of the unit: room temperature, fan speed and running mode, etc.3. Ceiling mounted exposed floor standing fan coil features(1) Excellent performanceAir flow capacities from 300 to 1400 CFM, 2-pipe or 4-pipe system combinations, economical, 3-speed fans deliver the right amount of conditioned air for comfort needs at any load.(2) High reliabilityCoils are factory leak tested at 3.3MPa air pressure with coil submerged in water. Base units are CE certified for European standards. Unit casing meets requirements for flame and smoke generation.(3) Easy maintenanceRemovable panels make access to components and connections easy. Cleanable filters available.Label information adhered to each unit includes model, cooling capacity, electrical information.(4) Simple installationPiping, drain and wiring connections are readily accessible. Predrilled mounting holes and slots.Compact unit casing accommodates installation in reduced ceiling plenum space.  4. Eurostars Fan coil unit series1Ceiling concealed fan coil unit2High ESP ducted fan coil unit3Universal concealed fan coil unit4Floor standing exposed fan coil unit5Ultra thin exposed fan coil unit6Ceiling exposed fan coil unit7Ceiling cassette fan coil unit8Ceiling exposed & floor standing fan coil unit9Wall mounted fan coil unit5. Ceiling mounted floor standing exposed fan coil unit specificationPlease ask salesman for detailed complete data or visit our website:eurostarschiller.en.made-in-china.comeurostarschiller.en.made-in-china.comCeiling Exposed/Floor Mounted Fan Coil Unit (2 pipe system)Model EST~300CF2400CF2500CF2600CF2800CF21000CF21200CF21400CF2Air flow (m3/h)High 51068085010201360170020402380Medium4205607709101210145018502150Low 3404806108201100138016002000Cooling capacityTHHW2700360045005400720090001080012600BTU921512287153591843024574307173686043004SHW19902730317442615385674681099062BTU67929317108331454318379230242767630929THMW248530303752446764997926938910605BTU848110341128061524622181270513204536195SHW15702015245030704278544766697262BTU5358687783621047814601185912276124785THLW20782504295038315660729586198989BTU70928546100681307519318248982941730679SHW12121545184423973317446053005555BTU413752736294818111321152221808918959Heating capacityHW405054006750810010800135001620018900BTU/h13823 18430 23038 27645 36860 46076 55291 64506 MW27923970494157407987105571310114011BTU/h9529 13550 16864 19591 27260 36031 44714 47820 LW17882800353339075464704887149778BTU/h6102 9556 12058 13335 18649 24055 29741 33372 Ceiling Exposed/Floor Mounted Fan Coil Unit (4 pipe system)Model EST~300CF4400CF4500CF4600CF4800CF41000CF41200CF41400CF4Air flow (m3/h)High 51068085010201360170020402380Medium4205607709101210145018502150Low 3404806108201100138016002000Cooling capacityTHHW20252700337540505400675081009450BTU69119215115191382318430230382764532253 SHW15322102244532814146519462456978BTU5229717483451119814150177272131423816THMW18642273281433504874594570427954BTU6362775896041143416635202902403427147SHW12101552188723653295419551355592BTU413052976440807211246143181752619085THLW15591878221328734245547064656742BTU532164107553980614488186692206523010SHW9331190142018452555343540814277BTU318440614846629
