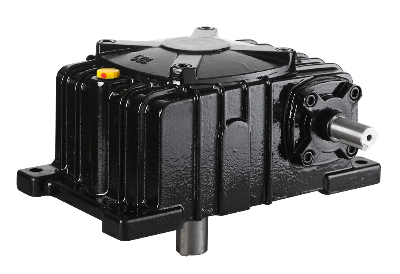

Wps Cast Iron Worm Gearbox (WP series)

Overview ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Quick Details Gearing Arrangement:    Worm                                                                                                                  Brand Name:                  EED Input Speed:                     1400 rpm                                                                                                          Certification:                   CE, ROHS, ISO9000 Rated Power:                    3 ~ 4KW                                                                                                            Output Torque:               2.8-2430N.M Color:                                 Blue/Silver or on request                                                                                Origin:                              Zhejiang, China (Mainland)          Warranty:                           1 Year                                                                                                                Ratio:1/10.1/15,1/20,1/25,1/30,1/40,1/50,1/60  ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Supply Ability Supply Ability:                   20000 Piece/Pieces per Month Extra Service:                    OEM is welcome          QC System:                        ISO9001:2008 ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Packaging & Delivery Package:                            Wooden box/Paper carton     Port:                                    Ningbo/Shanghai or on request      ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- 1. Widely used in turbines, shaft liners and axletrees, good resistance to wearing, with high precision in dimensions, lower noise, advanced centric running castings 2. Without vent and highly precision 3. The whole structure is compact and the weight is larger ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Notice of installation1 .Thebase-plate must be plane and stoutness, and the base-plate must be screwed downand shockproof. 2. Theconnecting shaft of prime mover, reducer and operation device must be coaxialinstallation. 3 .Thediameter tolerance zone of input and output shaft is H6, the holes of fittings(such as couplings, belt pulley, sprocket wheel and so on) must properly matethe shaft, which prevents bearing from breakage because of over-loose mate. 4. Driverssuch as sprocket wheel and gear must be fitted close to bearings in order toreduce bending stress of hanging shaft. 5. Whiteassembling motor of WPD reducer, it is necessary that proper amount of butterapplies to the worm shaft input hole and keyway, avoiding assembling tootightly and rusting after using for a long time. 6. WhenOrdering or using all kinds of WPD type, if the motor weight is binger than thecommon, supporting set is required. ----------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------------- Notices of usage1 .Before using, please check carefully whether the reducer model, distance, ratio, input connecting method, output shaft structure, input and output shaftdirection and revolving direction accord with requirement. 2 .According to the requirement of selecting lubricant oil in the productmanual, please fill proper category and brand lubricant. And then screw on thevent-plug; Unlock the small cone-plug of vent-plug. Only after doing th- ese, reducer is already for starting up running. The proper brand and adequatelubricant oil is required, replac- ing oil in time conforming to the request ofproduct manual is also necessary, especially after using first 100 h- ours, it isrequired refilling new oil. 3 .Whenabnormal circumstances occur, please stop and check reducer per solutions andreasons for faults of reducer (allowable highest oil temperature is 95, under this temperature limit, ifoil temperature no more goes up, please let reducer continue running. About EED since 1984Hangzhou Melchizedek Import & Export Co., Ltd. is a leader manufactur in mechanism field and punching/stamping field since 1984. Our main product, NMRV worm gear speed reducer and series helical gearbox, have reached the advanced technique index of the congeneric European and Janpanese products
