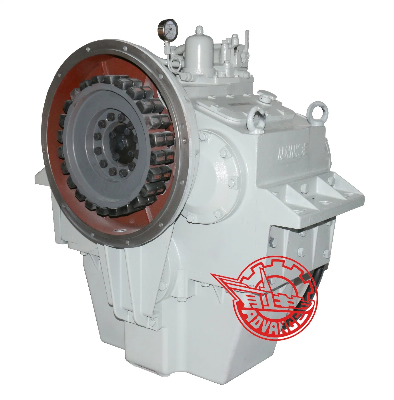

300 Series Marine Gearbox

DescriptionMarine Gearbox T300/1 possesses functions of speed reduction, ahead and astern clutching and bearing propeller thrust. It is designed of vertically offset and two-stage transmission, featuring in small in volume, large in ratio, light in weight and convenient in dis- and reassembly and maintenance..1 300 series marine gearbox2 Power: MAX. 805HP at 2300RPM3 China TOP BRAND4 Products Ratified by CCS, LR, GL, BV, ABS, NK, etc. Main DataInput speed1000-2300r/minReduction ratio4.73,4.95,6.032,6.649,7.039Trans. capacity0.243kw/r/min7.543,8.020.221kw/r/min8.470.200kw/r/minControl wayPush-and-pull flexible shaft, electrically, pneumaticallyRated thrust70KNCenter distance355mmL×W×H772×980×1106mmNet weight1120kgFlywheelSAE18,16,14Bell housingSAE0,1 ApplicationsMarine Gearbox T300 is suitable for fishing, tug, and various engineering and transport boats. GUIDE TO MODEL SELECTION1. Gearbox can not be in rigid connection with engine and must be installed in the same rigid supporter with engine.2. The "Net Weight" listed is approximate.3. When confirming the gearbox model, please contact "HANGZHOU ADVANCE GEARBOX GROUP Co., Ltd. ".Specifications:300 series Marine Gearbox.Power: 759-805HP.Rated Rev(r/min): 1000-2300.Center Distance(mm): 264.Thrust(kN): 50.Net Weight(kg): 740.Control Mode: Push-Pull Cable, electrical-controlled.Matched Engine: 12V135A, 12V150, 6160, KTA19-M600, TBD234V12, CAT3412T, TBD234V12.Please consider registering to shop on our web site.HANGZHOU ADVANCE GEARBOX GROUP Co., Ltd. (Hangzhou Advance Imp&Exp Co., Ltd. )ADD: 45XiaoJin Road Xiaoshan Hangzhou Zhejiang ChinaTel: 0571-83802831, 82680808Fax: 0571-83802832, 82673877HTTP: //chinaadvance. En. Made-in-China. com/So please feel free to inquire! Thank you.Hangzhou Advance Gearbox Group Co., Ltd. (Hangzhou Gearbox Works P. R. China) founed in 1960, is the largest professional manufacturer of transmission and powder metallurgic products in China. The company is situated at the south bank of Qiantang River, covering an area of 520, 000 m2, staffing around 3000 members, of whom over 800 are professional technicians. And our total assets is 1.42 billion RMB. The company has 10 factories, 3 joint ventures and 6 domestic or oversea business firms, two institutes( Hangzhou Marine Gearbox Institute and Hangzhou Powder Metallurgic Institute at ministry level), and professional institutes of engineering, cars and testing.
