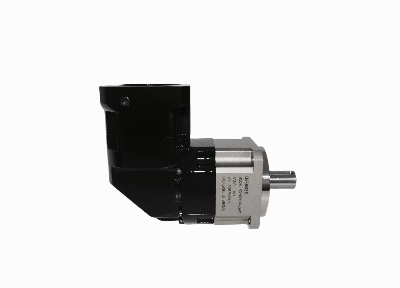

Desboer NBR115 Series Double Segment 90-Degree High-Precision Planetary Gearbox

Product DescriptionNBR115 series adopts an integrated design of sun gear and input shaft, integrated design of output structure, and increased right-angle design for more flexible installation and space-saving. The product has the characteristics of high load, high precision, and low noise, focusing on the use of automation equipment, various types of packaging, printing, lithium-ion, LCD, robot, palletizers, woodworking, doors, windows, and other industry sectors.                   Product Name: High Precision Planetary GearboxProduct Series: NBR 115 SeriesProduct features: high precision, high load, low noise, high flexibility, space saving.Product Description:Integrated design concept with high strength bearings ensure the product itself is durable and efficientA variety of output ideas such as shaft output, flange and gear are available.1 arc minute ≤ backlash ≤ 3 arc minutesReduction ratios ranging from 3 to 100Frame design: increases torque and optimises power transmissionOptimised selection of oil seals: reduces friction and laminate transmission efficiencyProtection class IP65Warranty: 2 yearsOur AdvantagesHigh precisionHigh loadLow noiseHigh flexibilitySpace saving Detailed PhotosProduct Parameters  Segment numberDouble segmentRatioi25303540455060708090100120140160180200Rated output torqueNm300290280240210210290280240210210290280240210210Emergency stop torqueNmThree times of Maximum Output TorqueRated input speedRpm4000Max input speedRpm8000Ultraprecise backlasharcmin≤4Precision backlasharcmin≤7Standard backlasharcmin≤9Torsional rigidityNm/arcmin25Max.bending momentNm6700Max.axial forceN3350Service lifehr20000(10000 under continuous operation)Efficiency%≥92%Weightkg14.2Operating TemperatureºC-10ºC~+90ºCLubrication Synthetic greaseProtection class IP64Mounting Position All directionsNoise level(N1=3000rpm,non-loaded)dB(A)≤68Rotary inertiaKg·cm²2.251.87Applicable Industries                      Packaging   Machinery                                           Mechanical  Hand                                                    Textile  Machinery                    Non  Standard  automation                                              Machine  Tool                                                    Printing    Equipment  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
