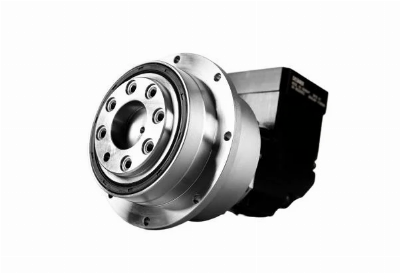

Desboer Ndr090 Series Double Segment Right-Angle Round Output Planetary Gearbox

Product DescriptionThe NDR090 series planetary gearboxes are designed and machined as a single unit with special tapered roller bearings to provide high radial load, high torque, ultra-precision, and small size. The ND series uses in highly rigid industries such as fiber optic laser equipment, floor track equipment, robot seventh axis, Parallel robots (spider hand) machine tools, and rotating arms.Product Name: High Precision Planetary ReducerProduct Series: NDR090 SeriesProduct features: high torque, high load, ultra-precision, small sizeProduct Description:Integrated design concept with high-strength bearings ensure the product itself is durable and efficientA variety of output ideas such as shaft output, flange and gear are available.1 arc minute ≤ backlash ≤ 3 arc minutesReduction ratios ranging from 4 to 200Frame design: increases torque and optimizes power transmissionOptimised selection of oil seals: reduces friction and laminate transmission efficiencyProtection class IP65Warranty: 2 yearsOur AdvantagesHigh torqueHigh loadUltra-precisionSmall sizeSpace savingDetailed PhotosProduct ParametersSegment numberDouble segmentRatioi2535405070100140200Rated output torqueNm1501301201501309513095Emergency stop torqueNmThree times of Maximum Output TorqueRated input speedRpm4000Max input speedRpm8000Ultraprecise backlasharcmin≤4Precision backlasharcmin≤7Standard backlasharcmin≤9Torsional rigidityNm/arcmin31Max.bending momentNm235Max.axial forceN2850Service lifehr30000(15000 under continuous operation)Efficiency%≥92%Weightkg4.5Operating TemperatureºC-10ºC~+90ºCLubrication Synthetic greaseProtection class IP64Mounting Position All directionsNoise level(N1=3000rpm,non-loaded)dB(A)≤65Rotary inertiaKg·cm²0.350.31  Applicable Industries                       Packaging   Machinery                                            Mechanical  Hand                                                     Textile  Machinery                      Non  Standard  automation                                            Machine  Tool                                                         Printing   Equipment  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
