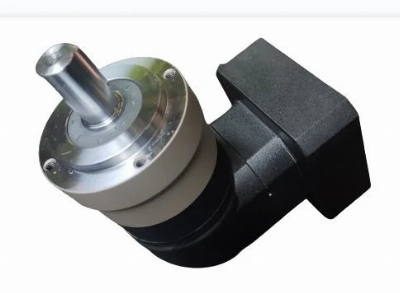

Desboer Ner155 Series Double Segment 90-Degree High-Precision Planetary Gearbox

Product DescriptionThe output section of the NER155 series planetary reducer is a round head, and the internal structure adopts an integrated design of the sun gear and the input shaft. The right-angle and specially adapted bearings of the product make it have the characteristics of high load, high precision, and low noise. NER series uses automation equipment, various packaging, printing, lithium batteries, LCD screens, manipulators, palletizers, woodworking, doors and windows, and other industries.         Product Name: High Precision Planetary GearboxProduct Series: NER155 SeriesProduct features: high precision, high load, low noise, high flexibility, space saving.Product Description:Integrated design concept with high strength bearings ensure the product itself is durable and efficientA variety of output ideas such as shaft output, flange and gear are available.1 arc minute ≤ backlash ≤ 3 arc minutesReduction ratios ranging from 3 to 100Frame design: increases torque and optimises power transmissionOptimised selection of oil seals: reduces friction and laminate transmission efficiencyProtection class IP65Warranty: 2 yearsOur AdvantagesHigh precisionHigh loadLow noiseHigh flexibilitySpace saving Detailed Photos Product Parameters  Segment numberDouble segmentRatioi25303540455060708090100120140160180200Rated output torqueNm610570520470420610570520470420420570520520410410Emergency stop torqueNmThree times of Maximum Output TorqueRated input speedRpm3000Max input speedRpm6000Ultraprecise backlasharcmin≤4Precision backlasharcmin≤7Standard backlasharcmin≤9Torsional rigidityNm/arcmin50Max.bending momentNm8460Max.axial forceN4700Service lifehr20000(10000 under continuous operation)Efficiency%≥92%Weightkg21.8Operating TemperatureºC-10ºC~+90ºCLubrication Synthetic greaseProtection class IP64Mounting Position All directionsNoise level(N1=3000rpm,non-loaded)dB(A)≤70Rotary inertiaKg·cm²6.846.25Applicable Industries                      Packaging   Machinery                                           Mechanical  Hand                                                    Textile  Machinery                    Non  Standard  automation                                              Machine  Tool                                                    Printing    Equipment  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
