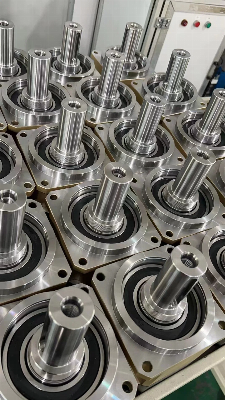

Ab 60 Planetary Gearbox

Planetary Gearbox AB Series 42 60 90 115 142 180 220 Square Flange Helical Bevel Planetary Transmission Gearboxes Servo Motor PLF series, PLE series, ZPLF series, ZPLE series, AB series, ABR series and many other models are available.Product DescriptionPlanetary Gearbox AB Series 42 60 90 115 142 180 220 Square Flange Helical Bevel Planetary Transmission Gearboxes Servo MotorAdvantages of the planetary gearbox:Low backlash High EfficiencyHigh TorqueHigh Input SpeedHigh StabilityHigh Reduction RatioDetailed PhotosProduct ParametersNameHigh Precision Planetary GearboxModelAB042, AB060, AB060A, AB090A, AB115, AB142, AB180, AB220Gearing ArrangementPlanetaryEffeiency withfull load≥97Backlash≤5Weight0.5~48kgGear TypeHelical GearGear stages1 stage, 2 stage Rated Torque14N.m-2000N.mGear Ratio One-stage3, 4, 5, 6, 7, 8, 9, 10Gear Ratio Two-stage15, 20, 25, 30, 35, 40, 45, 50, 60, 70, 80, 90, 100Mounting PositionHorizontal (foot mounted) or Vertical (flange mounted)Usagestepper motor, servo motor, AC motor, DC motor, etc External Mounting Dimensions1 stage reduction ratio 3~102 stage reduction ratio 15~100ApplicationsProduct Overview:   Precision planetary gear reducer is another name for planetary gear reducer in the industry. Its main transmission structure is planetary gear, sun gear and inner gear ring.Compared with other gear reducers, precision planetary gear reducers have the characteristics of high rigidity, high precision (single stage can achieve less than 1 point), high transmission efficiency (single stage can achieve 97% - 98%), high torque/volume ratio, lifelong maintenance-free, etc. Most of them are installed on stepper motor and servo motor to reduce speed, improve torque and match inertia. /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
