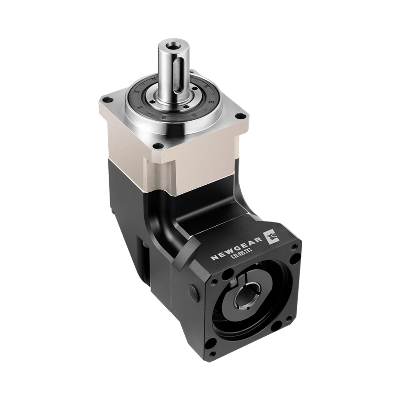

High Precision Transmission Ratio 10: 1 Helical Planetary Gear Box

High Precision Transmission Ratio 10:1 Helical Planetary Gear BoxPlanetary gearbox is a kind of reducer with wide versatility. The inner gear adopts low carbon alloy steel carburizing quenching and grinding or nitriding process. Planetary gearbox has the characteristics of small structure size, large output torque, high speed ratio, high efficiency, safe and reliable performance, etc. The inner gear of the planetary gearbox can be divided into spur gear and helical gear. Customers can choose the right precision reducer according to the needs of the application.Product DescriptionCharacteristics:1.Spiral bevel gear reversing mechanism to realize right angle steering output;2.The installation distance of spiral bevel gear pair is adjustable and the working sound is lower;3.Grinding bevel gear can be selected,and the working sound is more stable and quiet;4.Integrated structure,high precision,high rigidity;5.Double support case planet carrier structure,high reliable,suitable for high-speed frequent and reverse rotation;6.With axial clearance adjustment function;7.Collet type locking design,higher coaxiality of motor installtion;8.Helical gear transmission ,low backlash,more accurate positioning;9.Size range:60-120mm;10.Ratio range:3-100;11.Precision range:3-5arcmin (P1);5-8arcmin (P2)Product ParametersSpecificationsPXR42PXR60PXR90PXR120Technal ParametersMax. TorqueNm1.5times rated torqueEmergency Stop TorqueNm2.5times rated torqueMax. Radial LoadN780153033006700Max. Axial LoadN39060015003000Torsional RigidityNm/arcmin2.561223Max.Input Speedrpm8000800060006000Rated Input Speedrpm4000400030003000NoisedB≤56≤64≤66≤66Average Life Timeh20000Efficiency Of Full Load%L1≥95%       L2≥90%Return BacklashP1L1arcmin≤3≤5≤5≤5L2arcmin≤5≤7≤7≤7P2L1arcmin≤5≤8≤8≤8L2arcmin≤7≤10≤10≤10Moment Of Inertia TableL13Kg*cm2/0.42.286.874Kg*cm20.120.42.286.875Kg*cm20.090.42.286.877Kg*cm20.090.42.286.878Kg*cm2/0.41.454.7610Kg*cm20.090.31.454.7614Kg*cm2/0.42.286.8720Kg*cm2/0.42.286.87L225Kg*cm20.090.42.286.8730Kg*cm2/0.42.286.8735Kg*cm20.090.42.286.8740Kg*cm20.090.42.286.8750Kg*cm20.090.31.454.7670Kg*cm20.090.31.454.76100Kg*cm20.070.31.454.76Technical ParameterLevelRatio PXR42PXR60PXR90PXR120Rated TorqueL13Nm/401051654Nm17451302305Nm15451302307Nm12451002208Nm/459020010Nm104513023014Nm/4510022020Nm/3075175L225Nm154513023030Nm/4010516535Nm154513023040Nm174513023050Nm154513023070Nm1245130230100Nm1546130230Degree Of Protection IP65Operation TempratureºC - 10ºC to -90ºCWeightL1kg0.72.056.4513.7L2kg0.93.158.817.2Company ProfilePackaging & Shipping1. Lead time: 7-10 working days as usual, 20 working days in busy season, it will be based on the detailed order quantity;2. Delivery: DHL/ UPS/ FEDEX/ EMS/ TNTFAQ1. who are we?Hefa Group is based in Guangdong, China, start from 1998,has a three subsidiaries in total.The Main Products is planetary gearbox,timing belt pulley, helical gear,spur gear,gear rack,gear ring,chain wheel,hollow rotating platform,module,etc2. how can we guarantee quality?Always a pre-production sample before mass production;Always final Inspection before shipment;3. how to choose the suitable planetary gearbox?First of all,we need you to be able to provide relevant parameters.If you have a motor drawing,it will let us recommend a suitable gearbox for you faster.If not,we hope you can provide the following motor parameters:output speed,output torque,voltage,current,ip,noise,operating conditions,motor size and power,etc4. why should you buy from us not from other suppliers?We are 22 years experiences manufacturer on making the gears, specializing in manufacturing all kinds of spur/bevel/helical gear, grinding gear, gear shaft, timing pulley, rack, planetary gear reducer, timing belt and such transmission gear parts5. what services can we provide?Accepted Delivery Terms: Fedex,DHL,UPS;Accepted Payment Currency:USD,EUR,HKD,GBP,CNY;Accepted Payment Type: T/T,L/C,PayPal,Western Union;Language Spoken:English,Chinese,Japanese/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
