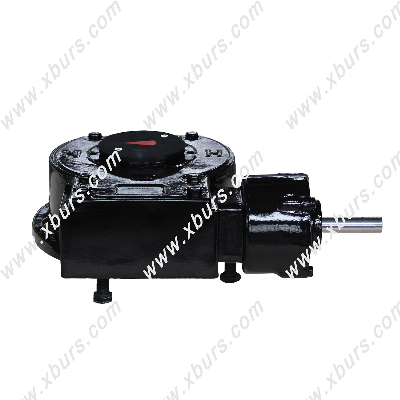

Double-Step Worm Gear Operator for Valve

Model:XHW90-PG10 Part-turn Gear BoxIntroductionPart-turn worm gearboxes used for applications such as Ball Valves, Butterfly Valves, Plug Valves, Dampers.The maximum out-torque is up to 32000 NmStandard Flange :F30/F35Optional Flange :F25/F40Max Stem Dia:160 mmMax Stem Height:155 mmApplicationXHW part turn worm gearboxes are applied to dampers, ball valves, butterfly valves and also other 90° quarter turn valves. XHW part turn worm gear operator has variety models of hand wheel for optional. Operating EnvironmentXHW part turn worm gearboxes are with good mechanical quality and steady operating performance which apply to deal with variety climate and temperature. We strive to develop XHW part turn worm gear operators to meet higher demands.Enclosure: IP67Working Temperature: From -20ºC to 120ºC( -4ºF to 248ºF)Painting: Black(Customization) IntroductionXHW series Part-turn Gearboxes use worm and worm wheel revolute pairs, with high performance needle roller bearing assembled on both ends of the worm shaft. It ensures the thrust requirement during rotation. It's in high mechanical efficiency withstands big torque, small size with compact design, and it's also easy to operate and has reliable self-locking function. Characters1.Precision casting ductile iron housing2.Optional output torque, range up to 32000Nm3.High efficient needle roller bearing4.High strength steel input shaft5.Stroke 0°- 90°( ±5°)6.Compact structure7.Grease filled for longer life8.Adjustable stopper (±5°)9.Good seal Connect with valveThe flange connecting to valve is according to ENISO5210 or DIN3210(Customization) Main ProductsWorm gearbox, bevel gearbox, valve gear box, worm gear operator, worm gear actuator, valve worm gear, valve gear operator, valve gear actuator, valve actuatorGear Operator, Valve Gearbox, Worm Gearbox, Gearbox, Speed Reducer, Part-turn Worm Gearbox, Worm Gearbox Supplier, High Quality Worm Gearbox, Gearbox manufacturer   /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
