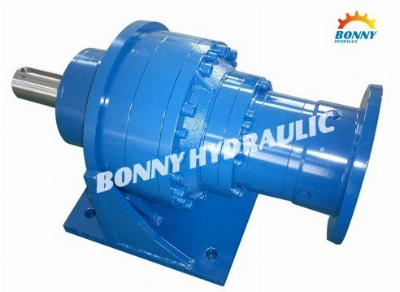

Foot Mounted Reduction Gear Brevini Planetary Gearbox

Model: BL300 SeriesReplace for: Brevini ED, ET, EQ, EM, EC and EL series                        Bonfiglioli 300 series                        Dinamicoil RE, RA series                        Reggiane Riduttori RR series Ratio: 3.4-5000 Output Torque: 1000-450000N.m  The installation and overall dimension of planetary gearboxes are strictly designed in accordance with Italy and American manufacturers, so they can be completely interchangeable with Brevini ED, ET, EQ, EM, EC and EL series, Bonfiglioli 300 series and Dinamicoil RE, RA series on performance and connection dimensions. They are the ideal product to replace those Italian products. Features:  1. Gear Unit Version: in line or right angle (with screw bevel pair Gleason)  2. Output Configuration: Foot and flange mounted  3. Output shaft: solid with key, splined, splined hollow, hollow shaft with shrink disc  3. Gear Unit Input Configurations: IEC-normalized Motor Adaptors or Solid Input Shaft  3. Main Brake Motor Features: DC and AC brake Hydraulic Brake: Fast Braking and/or brake releasing through  4. Mounting dimension is available on request.  5. Brake, balance valve, shuttle valve and the distributor which can integrate all kinds of function valve are also available on request.   TypeRated torque(Nm)Rated power(Kw)Input speed(Max rpm)Ratio range for Inline gearRatio range for Right angle gearRatio range for Combined with worm gearDesignBL30010002030003.3-27007-800400-9000ABL30117503030003.3-27007-800400-9000ABL30325004030003.6-29009-900400-9000ABL30550006030003.6-29009-900400-9000ABL30685007525003.7-29009-900400-9000ABL3071250010025003.4-250013-800400-9000ABL3091850013025003.4-250013-800400-9000BBL3102500015020003.8-250040-900400-9000BBL3113500018020004-220018-800400-9000BBL3135000020020004-220018-800400-9000BBL3158000025015004-200070-900400-9000BBL31610500027015004-200050-600400-9000BBL31715000030010004-190070-900400-3000BBL31820000034010004-1100200-700400-9000BBL3193000003805004-1400300-8001000-9000BBL3214500004505004-1100300-8001000-9000B  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
