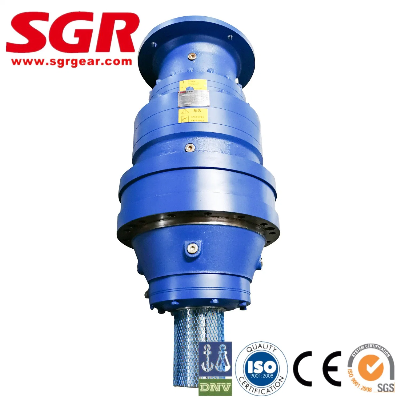

in Line Torque Arm Mounted Planetary Gearbox Speed Reducer

In Line Torque Arm Mounted Planetary Gearbox Speed Reducer Key feature:Planetary gearbox is produced by modular design, and can be combined according to client's requestInvoluted planetary gear design Nodular cast iron Housing to increase rigidity and antiknockHeavy duty bearing on low‐speed shaft, and can bear big radial load due to proportionate distribution of   torqueAll gears are case hardened to get high surface hardness, which guarantee transmission efficiency and whole gearbox's lifePlanetary gearbox has 16 models for different torque range, and each model have 1‐5 reduction stages to achieve different ratiosRatio range: 3.15‐9000Input power: 0.25‐55KWPermit torque rang: ≤ 800000N. MOutput speed: 0.425‐445 r/minStructure mode: Possibility of flange, foot, or shaft mounting solutionsWide and comprehensive range of N series for industrial applicationsLow speed shaft design: Cylindrical with key, splined, hollow with shrink disc or splined hollow shaftRigid and precise nodular cast iron casingLow noise running, high manufacturing quality standardHigh and reliable performance, load capacity and low speed shaft bearingData Sheet :Data Sheet :Torque range1000 ... 540000 NmInputIEC Flange Mechanical rating (n1 = 1500 min-1)up to 200kWElectric motor Gear ratios3.15 ... 5000Solid input shaft with or without fan cooling - inch or metric dims.Gear unit versionsIn lineApplicable AC motorsIntegral motors and brake motors Right angle (with bevel gear set)IEC-normalized motors and brake motors Mounting typeFoot Single and dual speed motorsFlange mountedMain brake featuresDC and AC supplyTorque-arm Faster brake reaction through electronically controlled rectifierOutput shaft options Solid shaftMain motor optionsThermistors and thermostat sensorsSplined shaftIndependent forced coolingFemale splined shaftLine driver and push-pull incremental encoderHollow shaft with shrink disc   /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
