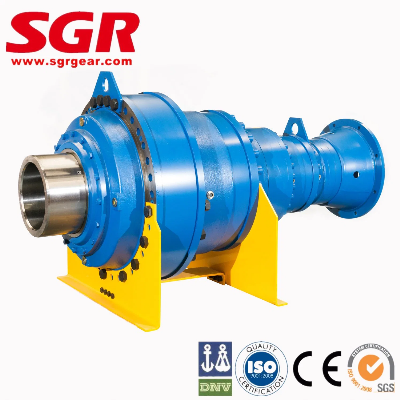

High Torque Straight Transmission Planetary Gearbox for Machining Equipment

High Torque Straight Transmission Planetary Gearbox for Machining EquipmentProduct DescriptionStraight 3 Stage Planetary Gearbox Technical data:1. Ratio range: 8.1-191 2. Input power: 0.12-270 KW 3. Permit torque rang: ≤ 50000 N. M 4. Output speed: 0.3~205 r/min 5. Structure: Foot-mounted, flange-mounted, shaft-mounted Technical Parameter:                                                                                                 Output Torque Range: 1000 to 450,000 N.mTransmissible Mechanical Power: up to 450 kWGear Ratios: 3 to 9000Gear Unit Versions:In line (Co-axial )Right angle (with a spiral bevel gear set)Output Configuration:Foot and flange mountedOutput shaft: solid with key, spline, spline hollow,Hollow with shrink discInput ConfigurationsFlanged axial piston hydraulic motorsHydraulic orbit motorsIEC and NEMA motor adaptorsSolid input shaftHydraulic Brake: Hydraulically released parking brake on requestApplication:SGR Planetary Gearbox is widely used for industrial applications. With the designs deriving from modern innovating, the product makes great progress in a compact, price effectiveness and combination. The product configuration is highly versatile due to several options as far as the mounting, the output shaft and the motor interface. With overloading bearing fixed to the output shaft, the products has been one of the powerful solutions to heavy-duty drive problems.How To Select a Complete SGR planetary gearbox:Complete planetary gearbox made up of 4 parts :AInput Component 1:AC electric motor 2: NEMA or IEC motor 3: NEMA or IEC motor adapter flange 4: the Solid input shaft 5: Solid input shaft with the fanBGear Reductions (co-axial stage 1-5 ,right angle 1-4 . ) 6:Right angle reduction stage 7: Planetary reduction stage 8: Worm/planetary combination 9: Bevel helical planetary combination  COutput Component  10: Flanged output/ Footed output-Solid shaft 11: Flanged output/ Footed output-Male spline shaft 12: Flanged output/ Footed output- Female spline shaft 13: Flanged output/ Footed output- 14: Flanged output/ Footed output-Pinion 15: Shaft Mount output for shrink discD Fittings 16: Flange 17: Pinion gear 18: Sleeve coupling 19: Endplate 20: Splined bar 21: Shrink disc  Our Services With all our activities DNV-ISO 9001, SGS -certified, we stand for top-quality service. Entrusting your gearboxes to the care of our Services.Help protect your gearbox from wear and grinding, SGR gearbox converts torque reliably and efficiently.We customize our SGR planetary gear units, double enveloping worm gearbox, helical gear motor, modular design helical gear unit, worm gearbox, cycloidal gearbox etc to fit your application and meet your needs. These features enable a reliable and safe service life of over 200 000 operational hours. Our customers have been placing their trust in SGR gear units since 1997. More than 500 000 gear units of our gearbox are in use reliably around the world, in many cases under very harsh conditions.FAQQ:  What is your business type?A: SGR is gearbox manufacturer and Solutions Provider,  we are experts of the planetarygear reducer, cone worm gearbox, modular design helical gear motor, worm gearbox etc. A suitable model will offer to you according to your requirement, besides, SGR also has professional technical team specializes in the custom gearbox and gearbox repair.     Q: How long can you provide products guarantee Period?A: Based on different gearbox types, 12-18 months.  Q: What's Certification your product acquire?A: DNV-ISO9001: 2008, SGS, CE etc. and new products patent.  Q: How many technical employees in your company? A: We have 10 engineers in our R&D Dep., included 1 engineers who enjoy government 's allowance.  Q: Where is your company & how to contact you?A: Our factory located in No.879 , JinLiu Rd, JinShan District , Shanghai City , China .    /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
