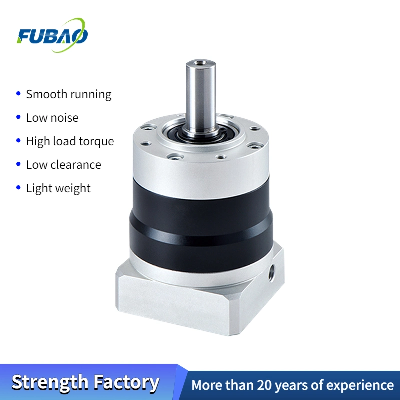

Fubao High Precision Low Noise Spur Gear Planetary Gearbox Wge60

Product Description1. The external gear adopts high quality 20CrMnTi/20CrMo/SCM415 material, controlled carburizing quenching, tooth surface hardness up to HRC60±2, tooth surface precision rolling - grinding JIS2; Tooth profile and tooth direction modification, with smooth operation, low noise, high bearing torque and low backlash; 2. The inner teeth are processed by multiple broaching or spiral cutting methods commonly used in Taiwan and Japan. 3, the input end and the motor are connected by a double opening, double screw barrel clamp locking mechanism, to ensure that the dynamic stability under high input speed, the concentricity of the combined surface and the power transmission of zero backlash; 4, planetary reducer input shaft modular design, suitable for any manufacturer, any type of motor; Reducer after the excessive flange made of magnesium aluminum alloy material, surface treatment, beautiful appearance, light weight, good heat dissipation; 5. All models of planetary reducer are added with skeleton oil seal to prevent oil leakage when the reducer is running at high speed; Bearings, oil seals and other standard parts using international and domestic famous brand products; 6, the shaft is made of alloy steel and tempered process to meet the requirements of strength and toughness in use. Detailed PhotosProduct DetailsProduct ClassificationProduct Characteristics1, unique appearance design, bending and straight combination, universal connection performance is strong; 2, the large motor can be matched with a small reducer, when the reducer is small, to meet the requirements of sufficient torque, can use a small reducer, economic and affordable; 3, the outer gear, the inner gear ring unified by Taiwan, Japan professional enterprise production, Vige full inspection, classification assembly; 4. The output and installation dimensions of the whole series of products are based on European standards; 5, reducer bearing type can be changed to meet greater axial and radial load requirements; 6. Full inspection is adopted in the delivery of reducer; 7, fast delivery time, standard 2 days can be delivered. Company ProfileFactory Display/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
