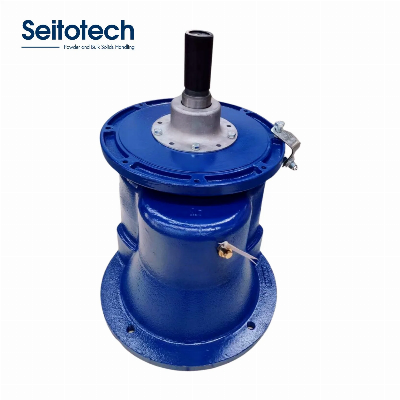

Product DescriptionDESCRIPTION:Gear reducers are enclosed helical gears with hollow inputs.The gear is mounted directly on the input shaft of the gear and receives support from a motor mounting bracket mounted on the machine housing. No additional parts are required to transfer torque from the reducer to the machine.It can be mounted in vertical, horizontal or inclined position.Shaft-mounted gear reducers typically have 5:1 7:1 10:1 reduction ratios and output speeds ranging from 1 to 300 rpm.M4 series gear reducer can be installed directly on screw conveyors and feeders with a XUH seal installed on the output shaft of the gearbox. Ensure that cement, and fly ash powder will not get into the gearbox and extend the service life of the gearbox.More suitable for bulk materials, grain and aggregate handling industries WORKING PRINCIPLE:M4 series gearboxes come in 5 sizes (M41 / M43 / M45 / M47 / M49). Nominal gear ratios are in accordance with Ra 10 UNI 2017 (5, 6, 7, 10). Cylindrical gears with helicoidal teeth. M4 series gearboxes can be mounted directly on screws: in this case, the XUH type output shaft seal is usually installed. M4 series gearboxes are supplied with grease for use at ambient temperatures (0°C - 40°C).PROPERTIES:- Helical gearbox- Nominal torque that can be transferred to the output shaft: up to 1500 Nm.- Installed power at the input up to 30 kW.- Operation at ambient temperature (0°C - 40°C).- DIN 5482 involute spline output shafts- Flange mounting on motor and output side- Precision-machined cylindrical bevel gears with teeth.- Flange mounting on motor and output sideBENEFITS:- Easy installation- Quick maintenance- Low installation costs Services Pre-sales Commitment1. For user inquiries, quick response, warm reception, and answer all questions.2. Provide detailed design information free of charge within 24 hours.Commitment in Sales1. All ex-factory products meet the quality standards specified in the contract. All products are tested according to customer requirements before delivery.2. After the contract is signed, the customers are welcome to the site of our company for supervision.After-sales Commitment1. We provide technical support for customers. If necessary, the product can be debugged on-site, and relevant operators can be trained to solve user problems.2. 24 hours to solve the problems for customers. Product use a day, a day of service.3. Set up a high-quality service team, and set up product files for regular return visits./* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
