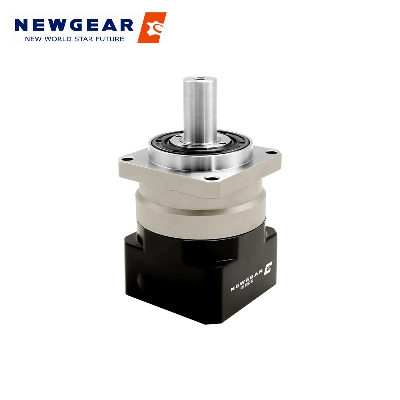

Factory Price Ratio 4: 1 Low Noise Transmission Planetary Gearbox Reducer

Factory Price Ratio 4:1 Low Noise Transmission Planetary Gearbox ReducerPlanetary gearbox is a kind of reducer with wide versatility. The inner gear adopts low carbon alloy steel carburizing quenching and grinding or nitriding process. Planetary gearbox has the characteristics of small structure size, large output torque, high speed ratio, high efficiency, safe and reliable performance, etc. The inner gear of the planetary gearbox can be divided into spur gear and helical gear. Customers can choose the right precision reducer according to the needs of the application.Product ParametersCharacteristics:1.Hole output structure,easy installation.2.Straight tooth drive ,single cantilever structure.simple design,economic price.3.Working steady. Low noise.4.Low return backlash. Can suit most occasion.5.The input connection specifications are complete and there are many choices.6.Keyway can be opened in the force shaft.7.Square mount flange output,high precision,high torque.8.Speed ratio range:3-1009.Precision range:8-16arcmin10.Size range:60-160mmSpecificationsPA60PA90PA120PA140PA180PA220Technal ParametersMax. TorqueNm1.5times rated torqueEmergency Stop TorqueNm2.5times rated torqueMax. Radial LoadN15303250670094001450016500Max. Axial LoadN63013003000470072508250Torsional RigidityNm/arcmin6122347130205Max.Input Speedrpm800060006000600060003000Rated Input Speedrpm400030003000300030001500NoisedB≤58≤60≤65≤68≤68≤72Average Life Timeh20000Efficiency Of Full Load%L1≥95%                        L2≥90%Return BacklashP1L1arcmin≤3≤3≤3≤3≤3≤3L2arcmin≤5≤5≤5≤5≤5≤5P2L1arcmin≤5≤5≤5≤5≤5≤5L2arcmin≤7≤7≤7≤7≤7≤7Moment Of Inertia TableL13Kg*cm20.160.613.259.2128.9869.74Kg*cm20.140.482.747.5423.6754.615Kg*cm20.130.472.717.4223.2953.517Kg*cm20.130.452.627.1422.4850.928Kg*cm20.130.452.67.14//10Kg*cm20.130.42.577.0322.5150.18L212Kg*cm20.130.450.452.637.323.5915Kg*cm20.130.450.452.637.323.5920Kg*cm20.130.450.452.636.9223.3325Kg*cm20.130.450.42.636.9222.6828Kg*cm20.130.450.452.436.9223.3330Kg*cm20.130.450.452.437.325.5935Kg*cm20.130.40.42.436.9222.6840Kg*cm20.130.450.452.436.9223.3350Kg*cm20.130.40.42.396.9222.6870Kg*cm20.130.40.42.396.7222.68100Kg*cm20.130.40.42.396.7222.68Technical ParameterLevelRatio PA60PA90PA120PA140PA180PA220Rated TorqueL13Nm4010516536088011004Nm4513023048088018005Nm45130230480110018007Nm45100220480110016008Nm4090200440//10Nm30751753607701200L212Nm40105165360880110015Nm40105165360880110020Nm451302304801100180025Nm451302304801100180028Nm451302304801100180030Nm40105165360880110035Nm451302304801100180040Nm451302304801100180050Nm451302304801100180070Nm4510022048011001600100Nm30751753607701200Degree Of Protection IP65Operation TempratureºC - 10ºC to -90ºCWeightL1kg1.253.758.51628.549.3L2kg1.755.11221.54062.5Company ProfilePackaging & ShippingFAQ1. Who are you?A: we are factory and have four subsidiary company. The four companies have more than 40000 square meters of standard plants, more than 600 professional technicians, more than 500 sets of precision equipment and 19 related technical patents, forming a complete production, sales and service integration system.2. What kind of module range can your gear make?A: 0.4~8M3. What is the hardness of your products that can be reached by heat treatment?A: The heat treatment hardness of different materials is different, which can be within HRC50~60 4. What level of gear accuracy can your company achieve?A: The highest precision is ISO 5 level and the conventional precision is ISO 6~7 level5. What services can we provide?Accepted Delivery Terms: Fedex,DHL,UPS;Accepted Payment Currency:USD,EUR,HKD,GBP,CNY;Accepted Payment Type: T/T,L/C,PayPal,Western Union;Language Spoken:English,Chinese,Japanese/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
