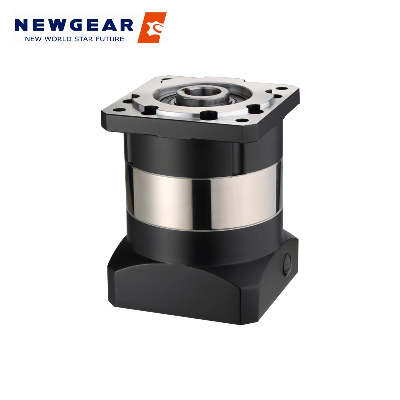

Factory Price Straight Gear Transmission Planetary Speed Reducer

Factory Price Straight Gear Transmission Planetary Speed ReducerPlanetary gearbox is a kind of reducer with wide versatility. The inner gear adopts low carbon alloy steel carburizing quenching and grinding or nitriding process. Planetary gearbox has the characteristics of small structure size, large output torque, high speed ratio, high efficiency, safe and reliable performance, etc. The inner gear of the planetary gearbox can be divided into spur gear and helical gear. Customers can choose the right precision reducer according to the needs of the application.Product ParametersCharacteristics:1.Hole output structure,easy installation.2.Straight tooth drive ,single cantilever structure.simple design,economic price.3.Working steady. Low noise.4.Low return backlash. Can suit most occasion.5.The input connection specifications are complete and there are many choices.6.Keyway can be opened in the force shaft.7.Square mount flange output,high precision,high torque.8.Speed ratio range:3-1009.Precision range:8-16arcmin10.Size range:60-160mmSpecificationsPFN60PFN80PFN90PFN120PFN160Technal ParametersMax. TorqueNm1.5times rated torqueEmergency Stop TorqueNm2.5times rated torqueMax. Radial LoadN24040045012402250Max. Axial LoadN22042043010001500Torsional RigidityNm/arcmin1.84.74.851135Max.Input Speedrpm80006000600060004000Rated Input Speedrpm40003500350035003000NoisedB≤58≤60≤60≤65≤70Average Life Timeh20000Efficiency Of Full Load%L1≥96%                     L2≥94%Return BacklashP1L1arcmin≤8≤8≤8≤8≤8L2arcmin≤12≤12≤12≤12≤12P2L1arcmin≤16≤16≤16≤16≤16L2arcmin≤20≤20≤20≤20≤20Moment Of Inertia TableL13Kg*cm20.460.771.7312.7836.724Kg*cm20.460.771.7312.7836.725Kg*cm20.460.771.7312.7836.727Kg*cm20.410.651.4211.3834.0210Kg*cm20.410.651.4211.3834.02L212Kg*cm20.440.721.4912.1834.2415Kg*cm20.440.721.4912.1834.2416Kg*cm20.440.721.4912.1834.2420Kg*cm20.440.721.4912.1834.2425Kg*cm20.440.721.4912.1834.2428Kg*cm20.440.721.4912.1834.2430Kg*cm20.440.721.4912.1834.2435Kg*cm20.440.721.4912.1834.2440Kg*cm20.440.721.4912.1834.2450Kg*cm20.340.581.2511.4834.0270Kg*cm20.340.581.2511.4834.02100Kg*cm20.340.581.2511.4834.02Technical ParameterLevelRatio PFN60PFN80PFN90PFN120PFN160Rated TorqueL13Nm2750961613644Nm40901222104235Nm40901222104237Nm34489517035810Nm16225686210L212Nm27509616136415Nm27509616136416Nm409012221042320Nm409012221042325Nm409012221042328Nm409012221042330Nm27509616136435Nm409012221042340Nm409012221042350Nm409012221042370Nm344895170358100Nm16225686210Degree Of Protection IP65Operation TempratureºC - 10ºC to -90ºCWeightL1kg0.952.273.066.9315.5L2kg1.22.83.868.9817Company ProfileNewgear(China) receive German precision planetary gear design and manufacturing technology,Production of high rigidity, small backlash, low noise, stable transmission, reliable and durable planetary reducer,widely used in various fields.Packaging & Shipping/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
