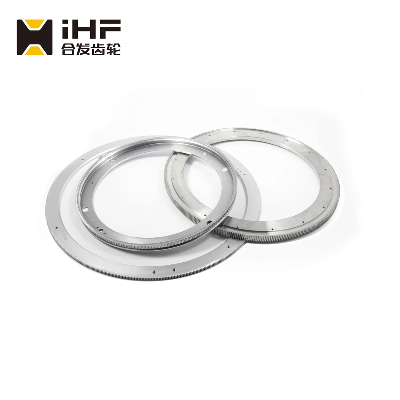

Gear Machining High Precision Wear-Resistant External Gear Ring Gear

Gear Machining High Precision Wear-Resistant External Gear Ring GearGear ring is composed of a flange half coupling with external gear and an internal gear ring with the same number of teeth. The external gear is devided into drum shaped gearand spur gear.The drum shaped nylon internal gear ring is to make the external gears into a spherical surface. The spherical surface center is on the gear axis, and the gear side clearance is larger than that of ordinary gears. The drum shaped nylon internal gear ring coupling can allow large angular displacement (relative to the straight gear coupling), which can improve the contact conditions of the teeth, improve the ability to transmit torque, and extend the service life.Product DescriptionRing Gear1. Produce strictly in accordance with ANSI or DIN standard dimension2. Material: Stainless Steel, Carbon Steel, Brass,  Bronze, Iron, Aluminum Alloy etc3. Bore: Finished bore4. Precision grade: DIN 5 to DIN 75. Surface treatment: Carburizing and Quenching6. Module: From 1 to 87. Tooth: From Z15 to Z70Product nameGear RingCustomized serviceOEM, drawings or samples customizeMaterials AvailableStainless Steel, Carbon Steel, S45C, SCM415, 20CrMoTi, 40Cr, Brass, SUS303/304, Bronze, Iron, Aluminum Alloy etcHeat TreatmentQuenching & Tempering, Carburizing & Quenching, High-frequency Hardening, Carbonitriding......Surface TreatmentConditioning, Carburizing and Quenching,Tempering ,High frequency quenching, Tempering, Blackening, QPQ, Cr-plating, Zn-plating, Ni-plating, Electroplate, Passivation, Picking, Plolishing, Lon-plating, Chemical vapor deposition(CVD), Physical vapour deposition(PVD)...BOREFinished bore, Pilot Bore, Special requestProcessing MethodMolding, Shaving, Hobbing, Drilling, Tapping, Reaming, Manual Chamfering, Grinding etcPressure Angle20 DegreeHardness55- 60HRCSizeCustomer Drawings & ISO standardPackageWooden Case/Container and pallet, or made-to-orderCertificateISO9001:2008Machining ProcessGear Hobbing, Gear Milling, Gear Shaping, Gear Broaching, Gear Shaving, Gear Grinding and Gear LappingApplicationsPrinting Equipment Industry, Laser Equipment Industry, Automated Assemblyline Industry, Woodening Industry, Packaging Equipment Industry, Logistics storage Machinery Industry, Robot Industry, Machine Tool Equipment IndustryCompany ProfilePackaging & ShippingPackagingPolyethylene bag or oil paper for each item;Pile on carton or as customer's demandDelivery of SamplesBy DHL, Fedex, UPS,  TNT, EMSLead time10-15 working days as usual, 30days in busy season, it will based on the detailed order quantity.FAQMain Markets?North America, South America, Eastern Europe , West Europe , North Europe, South Europe, AsiaHow to order?* You send us drawing or sample* We carry through project assessment* We give you our design for your confirmation* We make the sample and send it to you after you confirmed our design* You confirm the sample then place an order and pay us 30% deposit* We start producing* When the goods is done, you pay us the balance after you confirmed pictures or tracking numbers.* Trade is done, thank you!!  If you are interested in our products, please tell us which materials, type, width, length u want. /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
