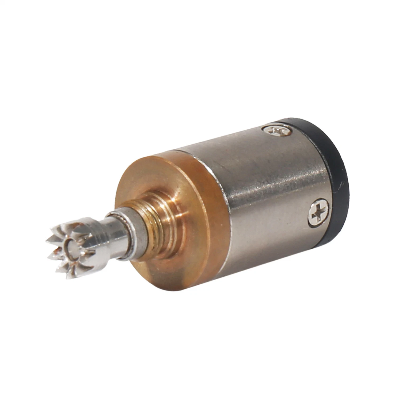

26mm Metal Cutted High Precious Low Noise Planetary Gearbox

Product overview:Planetary gearheads feature extremely high power transmission with a very short design. The modular design and the scaled stages provide the basis for a customer-specific solution. Metal components make use in a wide range of applications possible.At the same time they have a very compact form, low weight, and excellent efficiency. Self-centering planet gears ensure a symmetrical force distribution. The ring gear also forms the housing of the gearbox. The gearbox output shaft is supported in two ball bearings so that it can withstand high axial and radial loads. The gearboxes are customized, e.g. for use in especially low ambient temperatures, or as high-power gearboxes with reinforced output shafts, or with special lubricants for very long service life.Typical applications:  ATM in bank,Robot,Door-lock,Auto shutter, USB fan,Slot machine,Money detector, Coin refund devicesCurrency count machine, Towel dispensers, Automatic doors,Peritoneal machineAutomatic TV rack, Office equipemt ,Household appliances,Automatic, medical screwdriver, robotic armsLab stirrer, Cosmetology instrument, Medical devices, Hairdressing equipment,Cameras,Health-care articlesGeneral & Basic information/NO.Description/Value/1Outer diameter/Φ26mm2Type of Gearbox/Planetary/3Housing material/Metal/4Type of teeth/Straight/5Teeth material/*Steel/*6Output shaft material/Stainless Steel/7Bearing at output/Ball Bearing/8No-load backlash/≤2°9Number of stages availability/1,2,3,410Axial play/≤0.1 mm11Radial play/(8mm from flange/10mm)≤0.03 mm12Dynamic Max. axial load/≤25N13Max. force for press fits/≤50N14Max. radial force/(8mm from flange/10mm)≤70N15Operating temperature range/-40°C to +120°C16Operating relative humidity/20%RH to 90%RH* Normally the 1st stage gears to motor made by plastic in order to reducing noise if stage number more than 1.* 1,. Technical Data/NO.Description/Value/17Number of gear stages/123418Reduction ratio/3.7:14.3:15.2:1The ratio can be one of combinations of 3  ratios19Max. continuous input speed/8,000rpm10,000rpm15,000rpm15,000rpm20Max. intermittent input speed/10,000rpm15,000rpm20,000rpm20,000rpm21Max. continuous torque/500mNm750mNm2,000mNm2,500mNm22Max. intermittent torque/750mNm1,100mNm3,000mNm3,750mNm23Direction(from the driver to output) /()SameSameSameSame24Max. efficiency/90%81%73%65%25Weight without motor/(g)5062758926L2[mm]=Length without motor/21.530.539.548.527L1[mm]=Length with motor/The total length of gear motor depends on the motor specified..       Reduction ratioMotor pinion specifications/MaterialNumber of teethLengthHole diameter5.2:1 / 19.2:1 / 22:1 / 27:1 / 99:1 / 115:1 / 139:1 / 721:1Steel/Copper/z=11L=5 Pict         Φ2.0 4.3:1 / 16:1 / 18.3 / 79:1 / 218:1 / 337:1z=14L=53.7:1 / 13.7:1 / 51:1 / 189:1 z=17L=5Miscellanea:  Please contact us to get detailed specifications and drawings for the geared motor you're looking for.We are able to design and produce the geared motor you specified.(OEM & ODM).Please visit us at silent.en.made-in-china.com to get more information.  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
