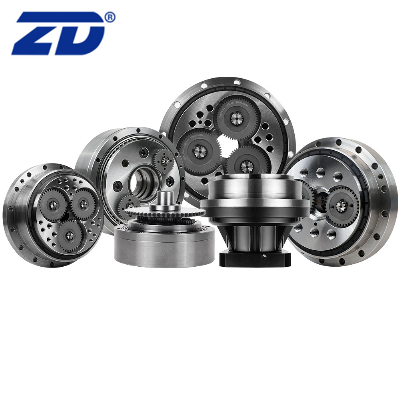

ZD High Precision Cycloidal Reducer for  Automotive Industry

ZD High Precision Cycloidal Gearbox The main features of Precsion Cycloidal Gearbox:1. High precision: backlash accuracy is less than 1 arc.min, comprehensive transmission accuracy is less than 1 arc.min, and rotation     repeatability is less than 20 seconds.2. Good rigidity and small backlash can overcome the jitter when the large inertia mechanism starts and stops. It has strong impact     resistance, strong anti-interference ability, and can withstand impact 5 times the rated torque.3. Small backlash, stable rotation. Be able to start and stop at any point of 360 degrees. Fast response, small hysteresis, and    correct indexing.4. Flexible application, diverse transmission and installation methods.  Model Selection How to Read Example:150 BX 81 RVE  A  B  (     )a      b   c     d    e   f     g  aFrame Size    150  =  145 mm bSeries Code     BX  = Precison Cycloidal Gearbox cReduction Ratio    RVE Series (Without Flange): 81:1, 105:1, 121:1, 141:1, 161:1;    RVA Series (With Flange): 45:1, 57:1, 104:1, 121:1, 141:1, 161:1; fSeries Code    RVE: Main shaft bulit-in type;    RVC: Hollow type;    REA: RVE type wiith flange;    RCA: RVC type with flangeeInput Shaft Type    A:  Standard type  A (See drawings and table below)    B:  Standard type B (See drawings and table below)    Z: Special ordering type;    W: None.    TB: For RVC serices (Input with synchronous pulley)fMounting Method    B: Mounted by bolt (output shaft)    P: Mounted by bolt and locating pines together (output shaft)gDiametter of Motor Shaft      Product Parameters1. Structures     RVE Series:      1. Needle Tooth Shell2. Pin Gear                       3. Main Bearing4. Output Flange                       5. Supporting Flange       6. Input Shaft7. Crankshaft                             8. Planetary Gear             9. Precision Cycloidal GearRVC Series: 1. Precision Cycloidal Gear       2. Output Flange                   3. Needle Tooth Sheel4. Pin Gear                                       5. Main Bearing                     6. Supporting Flange7.  Crankshaft                                    8. Planetary Gear                   9. Center Gear10. Tube of Low Speed     Workshop & Testing Other Related ProductsClick here to find what you may look for:Strain Wave GearboxCustomized Product ServiceCompany Profile  FAQQ: What're your main products?A: We currently produce Brushed Dc Motors, Brushed Dc Gear Motors, Planetary Dc Gear Motors, Brushless Dc Motors, Stepper motors, Ac Motors and High Precision Planetary Gear Box etc. You can check the specifications for above motors on our website and you can email us to recommend needed motors per your specification too.Q: How to select a suitable motor?A:If you have motor pictures or drawings to show us, or you have detailed specs like voltage, speed, torque, motor size, working mode of the motor, needed lifetime and noise level etc, please do not hesitate to let us know, then we can recommend suitable motor per your request accordingly. Q: Do you have a customized service for your standard motors?A: Yes, we can customize per your request for the voltage, speed, torque and shaft size/shape. If you need additional wires/cables soldered on the terminal or need to add connectors, or capacitors or EMC we can make it too. Q: Do you have an individual design service for motors?A: Yes, we would like to design motors individually for our customers, but it may need some mold developing cost and design charge. Q: What's your lead time?A: Generally speaking, our regular standard product will need 15-30days, a bit longer for customized products. But we are very flexible on the lead time, it will depend on the specific orders. Please contact us if you have specific requests, thank you !/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
