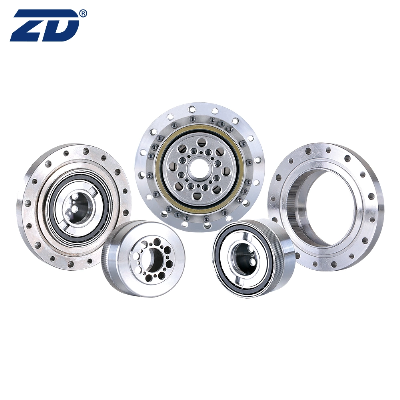

ZD High Precision Strain Wave Reducer for Robot and Automated Industry

High Precision Strain Wave Reducer for Robot and Automated Industry   Product DescriptionThe strain wave reducer are mainly used in medical equipment, semiconductor manufacturing device, energy related device, precision optical instrument, metal working machine, communication equipment, industrial robot, photovoltaic device.Characteristics of Strain Wave Gear Transmission:1.  High Precision: The multi-tooth is meshing at the two positions which are 180° from each other at the same time, so that the effluence on   transmission accuracy due to gear pitch error and the cumulative pitch error can be balanced and reach to extremely high transmission   accuracy.2. Transmission ratio: a single-stage strain wave gear transmission ratio can reach to 30~500.3. Load carrying capacity: the meshing area as well as the number of teeth at engage stage is large, so load which is divided on each tooth,      could be smaller accordingly, while the overall load could be very large.4. Size & weight: comparing with the conventional gear device, it has the features of miniaturization and light-weight.5. Transmission efficiency: the transmission efficiency of strain wave gear reducer can reach to 70%~85%.6. Smooth gearing, non-impact, and lower noise. Model Selection How to Read:Z  SHF - 32 - 120 - 2SO - AB - 002a     b      c       d        e       f       ga   Z: Zhongda LeaderbStructure of FlexsplineSHF: Standard Hat TypeSHD: Super Flat Hat TypeCSG: High-torque Cup TypeSHG: High-torque Hat TypeCSF: Standard Cup TypeCSD: Super Flat Cup Typec Model CodeThere are 5 Models: 14, 17, 20, 25, 32.                                                The code value multiplied by 2.54 is approximately equal to the diameter of the corresponding type of reducer.d    Reduction Ratio1:50,1: 80, 1:100, 1:120. e    Structures of Reducer2UH: Standard Unit Type2UJ: Shaft Input Type2UF: Flat Hollow Shaft Type2SO: Flat Type2SH: Flat Hollow Shaft Typef   Customer Codeg   Serial number  Detailed PhotosStructure and Main Parts:  Structure of A Strain Wave Gearbox:1. Wave Generator;2. Flexspline;3. Circular Spline  Circular Spline: The circular spline is a rigid ring with internal teeth, engaging the teeth of the flexspline across the major axis of the Wave Generator. The circular spline has two more teeth than the flexspline and is generally mounted onto housing.  Flexspline: The Flexspline is a flexible, thin cylindrical cup with external teeth. The bottom of flexspline is called diaphragm and generally mounted onto the output shaft.  Wave Generator: The wave generator is a thin raced ball bearing fitted onto an elliptical hub serving as a high efficiency torque converter and generally mounted onto the input shaft.  Other Models of Strain Wave Gear Reducer:  Application of Strain Wave Gear Reducer:  We are the manfacture Independently research and produce, Owned many intellectual property rights.Tell us your requirements, then we can customize the development. Other Related ProductsClick here to find what you are looking for:High Precision Cycloidal GearboxCompany Profile  FAQQ: What're your main products?A: We currently produce Brushed Dc Motors, Brushed Dc Gear Motors, Planetary Dc Gear Motors, Brushless Dc Motors, Stepper motors, Ac Motors and High Precision Planetary Gear Box etc. You can check the specifications for above motors on our website and you can email us to recommend needed motors per your specification too.Q: How to select a suitable motor?A:If you have motor pictures or drawings to show us, or you have detailed specs like voltage, speed, torque, motor size, working mode of the motor, needed lifetime and noise level etc, please do not hesitate to let us know, then we can recommend suitable motor per your request accordingly. Q: Do you have a customized service for your standard motors?A: Yes, we can customize per your request for the voltage, speed, torque and shaft size/shape. If you need additional wires/cables soldered on the terminal or need to add connectors, or capacitors or EMC we can make it too. Q: Do you have an individual design service for motors?A: Yes, we would like to design motors individually for our customers, but it may need some mold developing cost and design charge. Q: What's your lead time?A: Generally speaking, our regular standard product will need 15-30days, a bit longer for customized products. But we are very flexible on the lead time, it will depend on the specific orders. Please contact us if you have detailed requests, thank you !  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
