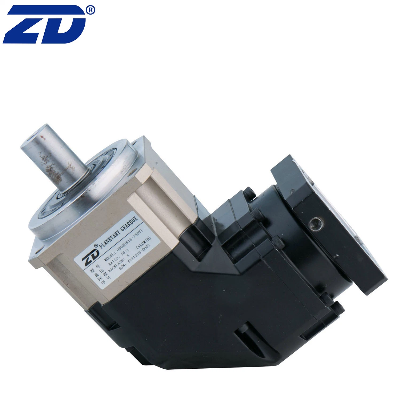

ZD Right Angle 142mm ZBR Series Precision Helical Gear Planetary Gearbox

Right Angle 142mm ZBR Series Precision Helical Gear Planetary Gearbox Product Description The high-precision planetary gearbox adopts helical gear design, and is used in various control transmission fields with servo motors, such as precision machine tools, laser cutting equipment, battery processing equipment, etc. It has the advantages of input and output integrated structure, large torque and high precision. The backlash of the ZBR series is less than 6 arc.min and the reduction ratio covers 3~20.The Product Advantages of Planetary Gearbox:1.Flexible structure design, in line with various working conditions.2.Ring gear processing technology: Using internal gear slotting machine and hobbing machine; the precision of ring gear after processing can reach GB7.3.Hardened gear secondary scraping technology: secondary high-speed dry cutting of gear eliminates gear deformation caused by heat treatment. Gear accuracy can reach GB6.4.Reliable backlash testing.Product Parameters SPECIFICATIONSSTAGERATIO060ZBR 090ZBR 115ZBR 142ZBR180ZBRRATED OUTPUT TORQUEN.M1336 90 195 342588448 120 260 5201040560 150 325 6501200655 150 310 6001100750 140 300 5501100845 120 260 5001000940 100 230 4509001040 100 230 4509001442 140 300 55011002040 100 230 450900Scram TorqueN.m13-2003  times  of  rated  torqueRated speedrpm13-2005000 4000 4000 30003000Max speedrpm13-20010000 8000 8000 60006000Backlash P0arcmin13-20- ≤2 ≤2 ≤2≤2Backlash P1arcmin13-20≤4 ≤4 ≤4 ≤4≤4Backlash P2arcmin13-20≤6 ≤6 ≤6 ≤6≤6Torsional RigidityN.M/arcmin13-2007 14 25 50145Allow radialN13-2001530 3250 6700 940014500Allow axialN13-2006301300300040006200Lifehr13-20020000Efficiency η%13-20≥95%Weightkg13-202.1 6.4 13 24.551TemperatureºC13-200-10ºC~+90ºCLubrication 13-200SYNTHETIC LUBRICATING GREASEProtection grade13-200IP 65Assembly   Easy  and  simpleNoise( L=1M)dB(A)13-200≤63 ≤65 ≤68 ≤70≤72Outline Drawing:  Product typeD1D2D3h6D4g6D5D6D7L1L2L3L4L5L6L7142ZBR165114013075M16×2P1851429715363512L8L9C14C24C34C44C54G6C64C74C84C94C104B1h9H133336165M10X1.5P≤3860130614222.5235.5151243Parts: Compact output shaft mechanismIt adopts the design of output shaft integrated system, compact structure, high rigidity, and it can withstand large impact. Place the input coupling and the sun gear at the center of the output shaft to improve the concentricity of the components, thereby effectively controlling the gear clearance and improving the backlash of the whole gearbox.  Ring gear structureThe integral structure of the ring gear and the output flange improves its rigidity and reduces misassembly.Bevel gear typeThe allowable output torque is 30% higher than that of spur gears. Strict control of the gears ensures high-precision running backlash.    Other Related ProductsClick here to find what you are looking for:  Company Profile FAQQ: What're your main products?A: We currently produce Brushed Dc Motors, Brushed Dc Gear Motors, Planetary Dc Gear Motors, Brushless Dc Motors, Stepper motors, Ac Motors and High Precision Planetary Gear Box etc. You can check the specifications for above motors on our website and you can email us to recommend needed motors per your specification too.Q: How to select a suitable motor?A:If you have motor pictures or drawings to show us, or you have detailed specs like voltage, speed, torque, motor size, working mode of the motor, needed lifetime and noise level etc, please do not hesitate to let us know, then we can recommend suitable motor per your request accordingly. Q: Do you have a customized service for your standard motors?A: Yes, we can customize per your request for the voltage, speed, torque and shaft size/shape. If you need additional wires/cables soldered on the terminal or need to add connectors, or capacitors or EMC we can make it too. Q: Do you have an individual design service for motors?A: Yes, we would like to design motors individually for our customers, but it may need some mold developing cost and design charge.  Q: What's your lead time?A: Generally speaking, our regular standard product will need 15-30days, a bit longer for customized products. But we are very flexible on the lead time, it will depend on the specific orders. Please contact us if you have detailed requests, thank you !/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
