Wireless Condition Monitoring System for Gearbox Atex Explosion Proof Version

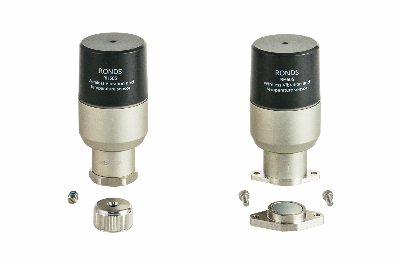

Working Diagram:  System Features:1. All channels synchronous collection2. One sensor collects both vibration and temperature3. Alarm SMS/EMAIL for both vibration and temperature data4. Intelligent alarm: minimal sampling value(RMS) interval  5min, good coverage of machine operation5. Wireless work mode, no need wiring work, saving wiring cost,Easy to Install6. Multiple communication options7. Convenient installationRONDS IWMS has no signal cable during installation, 2 years battery life of wireless accelerometer, secure installation of accelerometer with magnet base and M6 bolt. Satisfy the requirement of explosion proof degree on site8. Four in one sensor--vibration and temperature integrated sensorIntegrated design, synchronous collection of acceleration, velocity and displacement and temperatureTechnical ParametersRH505 Wireless Vibration and Temperature Integrated SensorVibration Measurement ParameterVibration Range±50 gLinearity1%Frequency Range (±3dB)2~20kHzSampling rate1280Hz~51.2kHzAnalysis frequency500Hz,1kHz,2kHz,5kHz,10kHz,20kHz Waveform Length1K,2K,4K,8K,16K,32K,64K,128KLines400,800,1600,3200,6400,12800,25600,51200Long time waveform Maximal length 2MTemperature Measurement ParameterTemperature Range-40~125 ºCTemperature Accuracy±1 ºC (-40ºC~125ºC)Electrical and Structure ParameterPower SupplyLithium - thionyl chloride battery, 3.6V, 3.3AhCommunication Method2.4GHz IEEE 802.15.4Dimension46 mm × 94 mm (Diameter * Height)Weight188 gEnvironment ParameterWorking Temperature-40~70 ºCIP gradeIP67RH560 Wireless data collectorInput and outputCommunication with Sensor2.4GHz IEEE 802.15.4Indicator LEDTotal 3 pieces (working, communication, abnormal status)Number of RH505 connecting30~60 units according to real application conditionElectrical and Structure ParameterPower Supply220V AC Dimension203 mm × 82 mm × 260 mm  (Length * Width * Height)Weight3 kgMountingHanging or fixation through holderEnvironmental ParameterWorking Temperature-40~70 °CIP gradeIP66MOS3000 SoftwareSite InstallationApplication Industrial FieldsRonds Global Market Performance  Contact Kelly XuTel/ +8617756039295  Web: ronds5335195.en.made-in-china.com  /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
