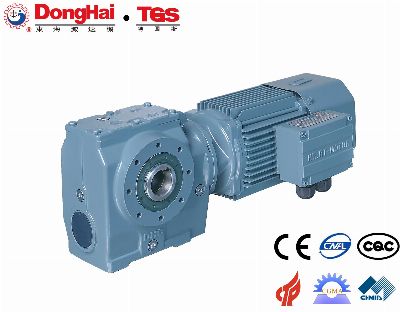

Product DescriptionE series helical gear worm reducer has a grade of high technical content, combined with the European standardand international standard technology products manufacturing standards, composed of helical gear and worm gearreducer integrated transmission, improve the torque and efficiency. Product specifications are a complete, wide range ofchoice, versatility, adapt to a variety of installation methods, performance is fully reliable, adapted to a variety ofenvironmental functions.Detailed PhotosProduct Show (Note: The following photos capture all the real physical) Tire manufacturing Brewing industry Automated operations Assembly line transmission Product ParametersE series gear motor is combined with helical gear and worm gear. It is 90° for the input and output shaft.E-coupling of shaft stretched, foot mountingEA-coupling of shaft mountingEF-Flange mounting, coupling of shaft stretchedEAF-Flange mounting, coupling of shaft stretchedEA/T-Torque-arm mounting, coupled with shaft stretchedEH-shrink disk mounting, coupled with shaft stretchedType: E37~E97Output speed:0.12~397rpmRated output torque:10~4200N*mMotor power: 0.12~22KW E ---- series helical-worm gear motorE-series single stagesModelOutput Shaft Dia.Center HeightOutput Flange Dia.PowerRatioPermitted TorqueOutput Speed Solid (mm) (mm)(mm)(kw)(Nm)(RPM)E3720k680j680/1200.12~1.56.72~1601058.4~397E4725k6100j6110/1600.12~1.57.5~2121906.6~192E5730k6112j6130/2000.18~3.07.5~2123406.5~194E6735k6140j6130/2000.25~5.57.45~2155656~189E7745k6180j6180/2500.37~7.57.9~25712003.5~177E8760m6225h6250/3500.55~158.52~27726001.0~171E9770m6280h6350/4501.5~228.26~28241854.9~177E- series double stages ModelOutput Shaft Dia.Center HeightOutput Flange Dia.PowerRatioPermitted TorqueOutput Speed Solid (mm) (mm)(mm)(kw)(Nm)(RPM)E37D1720k680j1380/1200.12110~202896.8~13E47D1725k6100j13110/1600.12~0.18180~4382553.2~7.4E57D1730k6112j13130/2000.12~0.25131~6553112.1~9.9E67D3735k6140j13130/2000.12~0.37246~13636001.0~5.6E77D3745k6180j13180/2500.12~1.1219~354012300.39~6.4E87D5760m6225h13250/3500.12~1.5205~764328100.18~6.9E97D5770m6280h13350/4500.12~3.0179~1126744200.12~7.7Remarks: Please refer to our catalog or ask for a salesman when your technical requirements are special.Company Profile-We are a leading gear motor manufacturerZhejiang Donghai Reducer is a leading manufacturer of gear motors and gearboxes.Since 1991, we have specialized in manufacturing a wide range of gear motors and gearboxes including: helical gear motor (D series)helical bevel gear motor (T series)parallel shaft helical gear motor (P series)helical worm gear motor (E series)hoist drive (DQ series)heavy-duty helical gearbox (QYJH series)heavy-duty helical bevel gearbox (QYJB series)gear motor for the car parking system (DHTC series)spiral bevel gearbox (HD series) CertificationsGeneral Technical dataHousing materialHT250 high-strength cast ironHousing hardnessHBS190-240Pinion material20CrMnTiHGear material20CrMnTiHSurface hardness of gearsHRC58°~62 °Gear core hardnessHRC33~40Input/output shaft material40CrMnTiHInput / Output shaft hardnessHRC25~30Machining precision of gearsaccurate grinding, 6~7 GradeLubricating oilGB L-CKC220Heat treatmenttempering, cementing, quenching, etc.Efficiency94%~96% (depends on the transmission stage) Noise (MAX)60~68dBTemp. rise (MAX)40°C Temp. rise (Oil)(MAX)50°CVibration≤20µmBacklash≤20ArcminBrand of bearingsChina Top brand C&U, LYC, TMB or other brands requested, S K F…..Brand of oil sealCTY--- Taiwan or other brands requestedPackaging & ShippingPlastic bag + carton FAQQ: Can you print other colors?A: Indeed. The gear motor can be adorned with bespoke hues in accordance with your esteemed preferences.Q: Is that the factory price?A: Affirmative. Rest assured, all prices are established upon the foundation of our esteemed factory.Q: What is the lifespan? What is the guarantee?A: The longevity of a gear motor can span from 5 to 20 years, contingent upon the intricate nuances of various operational conditions. A warranty of one year shall be in effect following the product's delivery.Q: What documents are available?A: A comprehensive array of documents, including structural drawings, a packing list, an installation manual, and relevant certificates, stands ready for your perusal. Furthermore, a customs declaration shall be provided. We pride ourselves on offering you a seamless end-to-end service.Q: Is it able to customize?A: Absolutely, should the total or projected quantity reach a sufficient threshold, we possess the capability to re-envision and fabricate the gear motor to suit your bespoke requirements. /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
