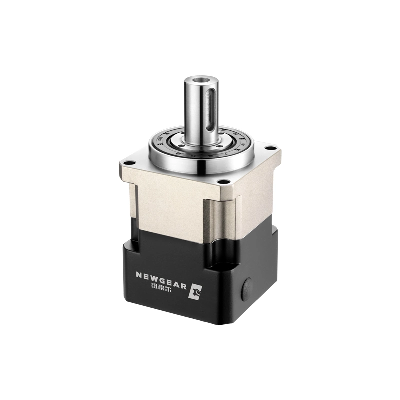

Wholesale PX120 Planetary Gearboxs With High Quality

Wholesale PX120 Planetary Gearboxs with High QualityThis helical planetary gearbox is used for servo motor and related device which need to reduce speed or enlarge torque! Newgear helical planetary gearboxes external diameter from 42 to 180, gear ratio from 3 to 100! It has high precision and are widely used with servo motor such like Panasonnic,Fuji, Mitsubishi, Omran,Delta, Teco.Product Parameters1.Integrated structure,high precision,high rigidity2.Double support cage planet carrier structure,high reliability,suitable for high-speed and frequent forward and reverse rotation3.With axial clearance adjustment function4.Keyway can be opened in the force shaft5.The structure is scientific and can bear greater axial and radial forces6.Helical transmission,drive more stable and carry capacity greater7.Low backlash,more accurate positioning8.Size range:42--180mm9.Ratio range:3-10010.Precision range:1-3arcmin (P1);3-5arcmin(P2)SpecificationsPX42PX60PX90PX120PX140PX180Technal ParametersMax. TorqueNm1.5times rated torqueEmergency Stop TorqueNm2.5times rated torqueMax. Radial LoadN780153032506700940014500Max. Axial LoadN3906301300300047007250Torsional RigidityNm/arcmin2.56122347130Max.Input Speedrpm800080008000800060006000Rated Input Speedrpm400040003000300030003000NoisedB≤56≤58≤60≤65≤68≤68Average Life Timeh20000Efficiency Of Full Load%L1≥95%       L2≥90%Return BacklashP1L1arcmin/≤3≤3≤3≤3≤3L2arcmin/≤5≤5≤5≤5≤5P2L1arcmin≤5≤5≤5≤5≤5≤5L2arcmin≤7≤7≤7≤7≤7≤7Moment Of Inertia TableL13Kg*cm2/0.160.613.259.2128.984Kg*cm20.030.140.482.747.5423.675Kg*cm20.030.130.472.717.4223.297Kg*cm20.030.130.452.627.1422.488Kg*cm20.030.130.452.6//10Kg*cm20.030.130.42.577.0322.51L212Kg*cm2/0.130.450.452.637.315Kg*cm2/0.130.450.452.637.320Kg*cm20.030.130.450.452.637.325Kg*cm20.030.130.450.42.637.328Kg*cm20.030.130.450.452.437.130Kg*cm2/0.130.450.452.436.9235Kg*cm20.030.130.40.42.437.140Kg*cm20.030.130.450.452.436.9250Kg*cm20.030.130.40.42.396.9270Kg*cm20.030.130.40.42.396.72100Kg*cm20.030.130.40.42.396.72Technical ParameterLevelRatio PX42PX60PX90PX120PX140PX180Rated TorqueL13Nm/401051653608804Nm17451302304808805Nm154513023048011007Nm124510022048011008Nm/4090200//10Nm103075175360770L212Nm/4010516544088015Nm/4010516536088020Nm174513023048088025Nm154513023048088028Nm1745130230480110030Nm/40105165480110035Nm1030130230480110040Nm1745130230480110050Nm1545130230480110070Nm12451002204801100100Nm103075175360770Degree Of Protection IP65Operation TempratureºC - 10ºC to -90ºCWeightL1kg0.51.253.758.51628.5L2kg0.81.755.11221.540Company ProfilePackaging & Shipping1. Lead time: 7-10 working days as usual, 20 working days in busy season, it will be based on the detailed order quantity;2. Delivery: DHL/ UPS/ FEDEX/ EMS/ TNT/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
