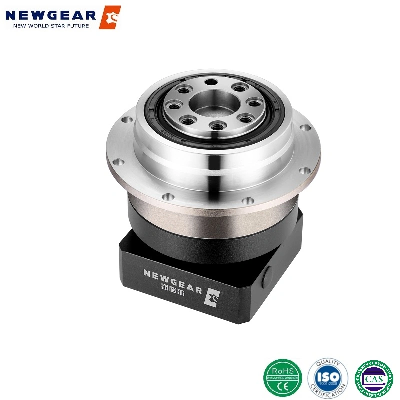

Factory Price Helical Gearbox Ratio 40: 1 Precision Planetary Gear Reducer

Factory Price Helical Gear Ratio 40:1 Precision Planetary GearboxPlanetary gearbox is a kind of reducer with wide versatility. The inner gear adopts low carbon alloy steel carburizing quenching and grinding or nitriding process. Planetary gearbox has the characteristics of small structure size, large output torque, high speed ratio, high efficiency, safe and reliable performance, etc. The inner gear of the planetary gearbox can be divided into spur gear and helical gear. Customers can choose the right precision reducer according to the needs of the application.Product DescriptionParameters:1.Specail flange joint output, can satisfy with the biggest installation.2.Shorter size,low installation space.3.Helical gear transmission,low return backlash,precision location.4.Double bracing cage planetary shelf structure.high reliable. Can suit reversible rotation frequently.5.With axial clearance adjustment function.6.The rotating frame bearing can be switched. After being changed into angular contact bearing, the bearing capacity of axial force and radial force will be greatly reduced.7.Impact resistance, can adapt to high acceleration and deceleration conditions.8.Size range:64-140mm9.Speed ratio range:3-10010.Precision range:1-3 arcmin(P1 level);3-5 arcmin(P2 level)Product ParametersSpecificationsPG64PG90PG110Technal ParametersMax. TorqueNm3times rated torqueEmergency Stop TorqueNm3times rated torqueMax. Radial LoadN205041008200Max. Axial LoadN51310252050Torsional RigidityNm/arcmin133182Max.Input Speedrpm600060004500-6000Rated Input Speedrpm400030003000NoisedB≤58≤60≤65Average Life Timeh20000Efficiency Of Full Load%L1≥95%       L2≥90%Return BacklashP1L1arcmin≤3≤3≤3L2arcmin≤5≤5≤5P2L1arcmin≤5≤5≤5L2arcmin≤8≤8≤8Moment Of Inertia TableL14Kg*cm20.130.512.875Kg*cm20.130.472.717Kg*cm20.130.452.6210Kg*cm20.030.442.57L216Kg*cm20.030.230.4720Kg*cm20.030.230.4725Kg*cm20.030.230.4728Kg*cm20.030.230.4735Kg*cm20.030.230.4740Kg*cm20.030.230.4750Kg*cm20.030.20.4470Kg*cm20.030.20.44100Kg*cm20.030.20.44Technical ParameterLevelRatio PG64PG90PG110Rated TorqueL14Nm401202205Nm401252607Nm4012526010Nm3580160L216Nm5012030020Nm5012030025Nm5012535028Nm5012030035Nm5012535040Nm5012535050Nm5012535070Nm50125350100Nm3580220Degree Of Protection IP65Operation TempratureºC - 10ºC to -90ºCWeightL1kg1.33.47.1L2kg1.94.79.5Company ProfilePackaging & Shipping1. Lead time: 7-10 working days as usual, 20 working days in busy season, it will be based on the detailed order quantity;2. Delivery: DHL/ UPS/ FEDEX/ EMS/ TNTFAQ1. who are we?Hefa Group is based in Guangdong, China, start from 1998,has a three subsidiaries in total.The Main Products is planetary gearbox,timing belt pulley, helical gear,spur gear,gear rack,gear ring,chain wheel,hollow rotating platform,module,etc2. how can we guarantee quality?Always a pre-production sample before mass production;Always final Inspection before shipment;3. how to choose the suitable planetary gearbox?First of all,we need you to be able to provide relevant parameters.If you have a motor drawing,it will let us recommend a suitable gearbox for you faster.If not,we hope you can provide the following motor parameters:output speed,output torque,voltage,current,ip,noise,operating conditions,motor size and power,etc4. why should you buy from us not from other suppliers?We are 22 years experiences manufacturer on making the gears, specializing in manufacturing all kinds of spur/bevel/helical gear, grinding gear, gear shaft, timing pulley, rack, planetary gear reducer, timing belt and such transmission gear parts5. what services can we provide?Accepted Delivery Terms: Fedex,DHL,UPS;Accepted Payment Currency:USD,EUR,HKD,GBP,CNY;Accepted Payment Type: T/T,L/C,PayPal,Western Union;Language Spoken:English,Chinese,Japanese/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
