90° Angle High Torque Planetary Gearbox for Servo Motor

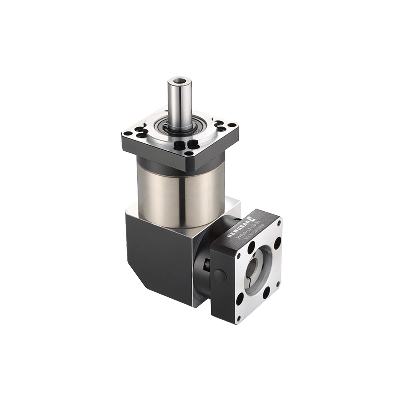

90° angle high torque Planetary Gearbox for Servo MotorThis helical planetary gearbox is used for servo motor and related device which need to reduce speed or enlarge torque! Newgear helical planetary gearboxes external diameter from 64 to 110, gear ratio from 3 to 100! It has high precision and are widely used with servo motor such like Panasonnic,Fuji, Mitsubishi, Omran,Delta, Teco.Product DescriptionDescription:(1).The output shaft is made of large size,large span double bearing design,output shaft and planetary arm bracket as a whole.The input shaft is placed directly on the planet arm bracket to ensure that the reducer has high operating accuracy and maximum torsional rigidity.(2).Shell and the inner ring gear used integrated design,quenching and tempering after the processing of the teeth so that it can achieve high torque,high precision,high wear resistance.Moreover surface nickel-plated anti-rust treatment,so that its corrosion resistance greatly enhanced.(3).The planetary gear transmission employs full needle roller without retainer to increase the contact surface,which greatly upgrades structural rigidity and service life.(4).The gear is made of Japanese imported material.After the metal cutting process,the vacuum carburizing heat treatment to 58-62HRC. And then by the hobbing,Get the best tooth shape,tooth direction,to ensure that the gear of high precision and good impact toughness.(5).Input shaft and sun gear integrated structure,in order to improve the operation accuracy of the reducer.Product ParametersCharacteristic:1.With bevel gear reversing mechanism,right angle steering output is realized; 2.Square flange output,standard size; 3.The input specification are complete and there are many choices; 4.Spur transmission ,single cantilever structurer,design simple,high cost performance; 5.Keyway can be opened in the force shaft; 6.stable operation,low noise; 7.Size range:60-120mm 8.Ratio range:3-100; 9.Backlash:8-16arcmin; 10.Support custom according to drawings or samples SpecificationsPVFN60PVFN90PVFN120Technal ParametersMax. TorqueNm1.5times rated torqueEmergency Stop TorqueNm2.5times rated torqueMax. Radial LoadN2404501240Max. Axial LoadN2204301000Torsional RigidityNm/arcmin1.84.8511Max.Input Speedrpm800060006000Rated Input Speedrpm400035003500NoisedB≤58≤60≤65Average Life Timeh20000Efficiency Of Full Load%L1≥95%       L2≥92%Return BacklashP1L1arcmin≤8≤8≤8L2arcmin≤12≤12≤12P2L1arcmin≤16≤16≤16L2arcmin≤20≤20≤20Moment Of Inertia TableL13Kg*cm20.461.7312.784Kg*cm20.461.7312.785Kg*cm20.461.7312.787Kg*cm20.411.4211.3810Kg*cm20.411.4211.38L212Kg*cm20.441.4912.1815Kg*cm20.441.4912.1816Kg*cm20.721.4912.1820Kg*cm20.441.4912.1825Kg*cm20.441.4912.1828Kg*cm20.441.4912.1830Kg*cm20.441.4912.1835Kg*cm20.441.4912.1840Kg*cm20.441.4912.1850Kg*cm20.341.2511.4870Kg*cm20.341.2511.48100Kg*cm20.341.2511.48Technical ParameterLevelRatio PVFN60PVFN90PVFN120Rated TorqueL13Nm27961614Nm401222105Nm401222107Nm349517010Nm165686L212Nm279616115Nm279616116Nm4012221020Nm4012221025Nm4012221028Nm4012221030Nm279616135Nm4012221040Nm4012221050Nm4012221070Nm3495170100Nm165686Degree Of Protection IP65Operation TempratureºC - 10ºC to -90ºCWeightL1kg1.74.412L2kg1.9514Company ProfilePackaging & Shippinglead time7-10 working days as usual,15 days in busy season,it will based on the detailed order quantityDelivery of samplesby DHL,Fedex,UPS,TNT,EMS/* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
