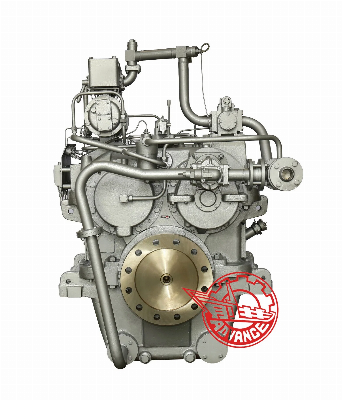

GW Series Gearbox

Rated Rev(r/min): 400-1800.Transmission Capacity(kW/r. Min-1): 0.684Thrust(kN): 120Net Weight(kg): GWS32.35: 2250, GWK32.35: 2080, GWH32.35: 2080, GWD32.35: 2080Details: GW family marine gearbox is produced according to the technology introduced from LOHMANN, Germany. It covers six series, among which, GWC, GWD, GWS and GWH series are ahead-astern clutch reduction gearboxes; GWL and GWK clutch reduction gearboxes. Their structural features are as follows:GWC series: Have double-step reduction (primary and final) and reversal step input shaft and output shaft are homocentric arranged, with the rotation direction same SGW model of double ratios is a derivative of GWC series.GWD series: Have single-step reduction (no primary) and reversal step one of the two clutch shafts functions as a driving shaft; Input and output shafts are angular heterocentric arranged, with the rotation direction contrary.GWS series: No primary device, only have final and reversal step; Input and output shafts are vertical heterocentric arranged, with the rotation direction contrary.GWH series: No primary reduction device, only have final and reversal steps; Input and output shafts are horizontal heterocentric arranged, with the rotation direction cintrary.GWL series: Have no functions of ahead and astern; Similar to GWC series in construction, but only have primary and find reduction devices; Input and output shafts are homocentric arranged with the rotation direction same...GWK series: Have no functions of ahead and astern; Only have single-step reduction device; Input and output shafts are vertical heterocentric arranged with the rotation direction contrary."advance" as a famous brand in China, exports its products to more than 50 countries And regions, including southeast Asia, Europe, Australia, Africa, Middle East, America, etc.The company has established jointventures in Malaysia, Hongkong and Macau, all of Which are equipped with integrated after-sale service system.We deeply appreciate all our friends and hope to make further cooperation.Our promise:Our advantages:1. The Leading Companies of China'sIndustrial Sector2. Top 100 Companies in China's Mechanical Industry3. Top 500 Competitiveness of China's Large Enterprises Groups4. Listed company in shanhai stock exchange5. Our company passed the certificate of ISO9001 quality management system & ISO 14001 Environmental management system, OHSMS18001 occupational health and safety management system.6. All the products have the approval of CCS.Please consider registering to shop on our web site.HANGZHOU ADVANCE GEARBOX GROUP Co., Ltd. (Hangzhou Advance Imp&Exp Co., Ltd. )ADD: 45XiaoJin Road Xiaoshan Hangzhou Zhejiang ChinaTel: 0571-83802831, 82680808Fax: 0571-83802832, 82673877HTTP: //chinaadvance. En. Made-in-China. com/So please feel free to inquire! Thank you.
