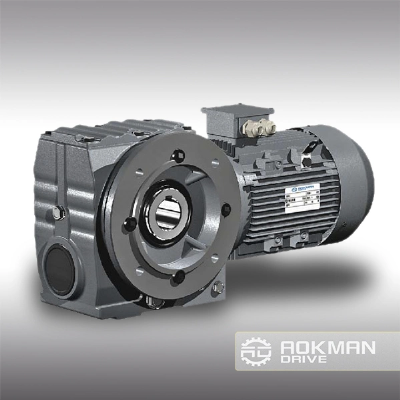

Flange-Mounted Right Angle S Series Helical Worm Gear Box

Flange-Mounted Right Angle S Series Helical Worm Gear Box1. Product Characteristics S series helical worm gearbox adopts the helical worm gears to make its structure more reasonable. S series not only has higher transmission efficency and loading capability than those single-stage worm wheel transmission, but also smaller volume and appearance. Moreover, S series worm gearbox has higher transmission ratio, and can be combined with various gearboxes and speed variators to meet the different requirements. 2. Technical Data Rated Power                          0.18~22KWOutput Speed                        0.16~147r/minOutput Torque                                                                                                     90~4000N.mMounted FormFoot-mounted, flange mounted, shaft-mounted, torque arm mountedHousing                                                                                                  Aluminum and Casting Iron 3. Structure S series gearbox are available in the following designs: (1) SY  Foot mounted helical worm gearbox with solid shaft (2) SAY  Helical worm gearbox with hollow shaft (3) SAZY  Small flange mounted helical worm gearbox with hollow shaft (4) SA (S,SF,SAF,SAZ)Y  Assemble users' motor or special motor, flange is required (5) SFY  Flange mounted helical worm gearbox with solid shaft (6) SAFY  Flange mounted helical worm gearbox with hollow shaft (7) SATY  Torque arm mounted helical worm gearbox with hollow shaft (8) S (SF,SA,SAF,SAZ) S  Shaft input helical worm gearbox (9) SA (S,SF,SAF,SAZ)RY  Combined helical worm gearbox (10) SA (S,SF,SAF,SAZ)SR  Shaft input combined helical worm gearbox 4. Detailed parameters    Size38485868788898  Structure                                          S SA SF SAF SAT SAZ   Input Power(KW)0.18-0.750.18-1.50.18-30.25-5.50.55-7.50.75-151.5-22Ratio10.27-15211.46-244.7410.78-196.2111.55-227.209.96-241.0911.83-22212.75-230.48Maximum torque(N.m)901702955201270228040005.Product pictures: 6.Our company : AOKMAN® was founded in 1982, which has more than 36 years in R & D and manufacturing of gearboxes, gears, shaft, motor and spare parts. We can offer the proper solution for uncountable applications. Our products are widely used in the ranges of metallurgical, steel, mining, pulp and paper, sugar and alcohol market and various other types of machines with a strong presence in the international market. AOKMAN® has become a reliable supplier, able to supply high quality gearboxes.With 36 years experience, we assure you the utmost reliability and security for both product and services. 7.Customer visiting: 8.FAQ: 1.Q:What kinds of gearbox can you produce for us? A:Main products of our company: UDL series speed variator,RV series worm gear reducer, ATA series shaft mounted gearbox, X,B series gear reducer, P series planetary gearbox and R, S, K, and F series helical-tooth reducer, more than one hundred models and thousands of specifications 2.Q:Can you make as per custom drawing? A: Yes, we offer customized service for customers. 3.Q:What is your terms of payment ? A: 30% Advance payment by T/T after signing the contract.70% before delivery 4.Q:What is your MOQ? A: 1 Set If you have any demand for our products please feel free to contact me. /* January 22, 2024 19:08:37 */!function(){function s(e,r){var a,o={};try{e&&e.split(",").forEach(function(e,t){e&&(a=e.match(/(.*?):(.*)$/))&&1
